XTAE018C10TD5E005
Eaton Starters, XT Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

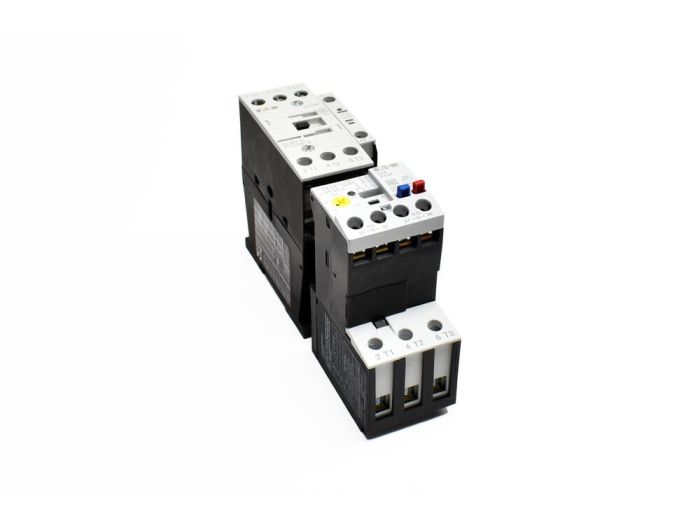

XTAE018C10TD5E005 Eaton Starters, XT Series
XT FR-C 18A FVNR STR: 1NO, 24 VDC, 1-5A
MFG Item Number
XTAE018C10TD5E005
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Starters, XT Series
Item #
XTAE018C10TD5E005
XT FR-C 18A FVNR STR: 1NO, 24 VDC, 1-5A
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | XTAE018C10TD5E005 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Starters, XT Series |
| Description | Eaton XT IEC electronic motor starter,Full voltage non-reversing IEC starter,18 A,24-27 Vdc,1NO,C frame,45 mm,1-5 A XTOE,Screw terminals |
| Style | Open |
| Industry Standard | IEC |
| Poles | 3 |
| Voltage | 24-27 VDC |
| Nominal Voltage | 24 VDC |
| Motor FLA (Amps) | 1-5 A |
| UL Motor Starting (AC3) | 18 A |
| General Purpose (AC1) | 35 A |
| Coil Type | Magnetic |
| Auxiliary Contact | 1NO |
| Overload Type | Electronic |
| Overload Series | XTOE |
| Termination | Screw |
| Mounting | DIN Rail, Surface |
| Approvals | CE, CSA, UL |
| H x W x D | 4.20 " x 1.85 " x 6.45 " |
| Net Weight | 1.775 lbs |
| Gross Weight | 1.99 lbs |
