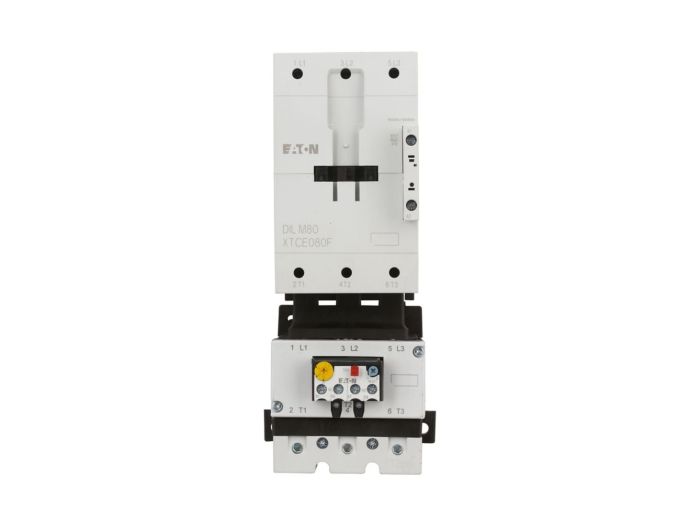

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTAE150G00A070 Eaton Starters, XT Series
MFG #:
EATON-3-1842-071A
Item Number
XTAE150G00A070
Eaton XT IEC electronic motor starter,Full voltage non-reversing IEC starter,150 A,100-120 V 50/60 Hz,0NO-0NC,G frame,90 mm,50-70 A,Screw terminals
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | EATON-3-1842-071A |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Starters, XT Series |
| Style | Open |
| Industry Standard | IEC |
| Poles | 3 |
| Voltage | 120 VAC |
| Nominal Voltage | 120 VAC |
| Motor FLA (Amps) | 50-70 A |
| UL Motor Starting (AC3) | 150 A |
| General Purpose (AC1) | 160 A |
| Coil Type | Magnetic |
| Auxiliary Contact | None |
| Overload Type | Thermal |
| Overload Series | XTOB |
| Termination | Screw |
| Mounting | Surface |
| H x W x D | 7.00 " x 5.50 " x 12.00 " |
| Net Weight | 8.1 lbs |
| Gross Weight | 8.1 lbs |
Description
Starters, XT Series
Item #
XTAE150G00A070
Str 3P FVNR 150A FR G 50-70A 100-120V50/
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Added to Cart

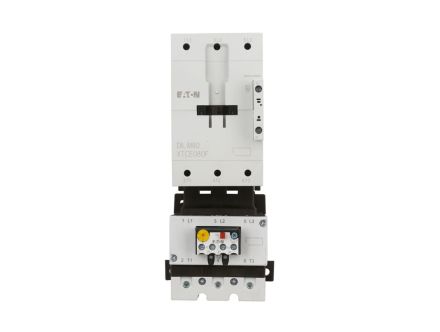

XTAE150G00A070 Eaton Starters, XT Series, Str 3P FVNR 150A FR G 50-70A 100-120V50/
