Series

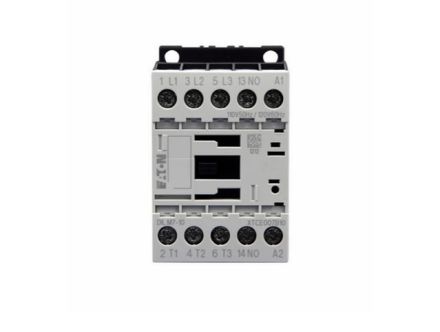

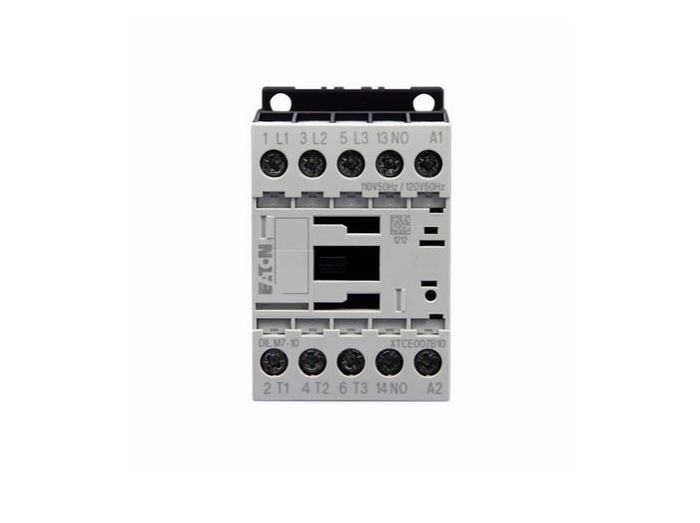

XTCE007B10WD Eaton Contactors, XT Series
MFG #:
XTCE007B10WD
Eaton XT IEC contactor, 7A, 48 Vdc, 1NO, 7A, Frame B, 45 mm, 0.25, 0.75, 1/ 1.5, 2, 3, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing, XT IEC series, Screw terminals, Full voltage non-reversing contactor
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCE007B10WD |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 48 VDC |
| Coil Voltage | 48 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | B |
| Auxiliary Contact | 1NO |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 7 A |
| H x W x D | 1.81 " x 2.76 " x 3.07 " |
| Net Weight | 0.6 lbs |
| Gross Weight | 0.6 lbs |
Description
Contactors, XT Series
Item #
XTCE007B10WD
Cont 3P FVNR 7A FRAME B 1NO 48VDC COIL
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
