Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

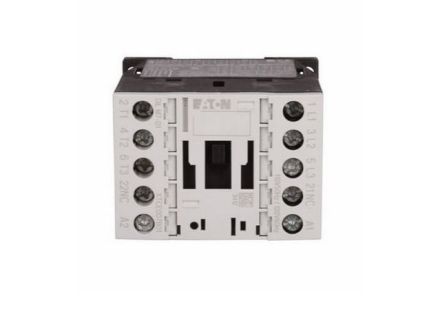

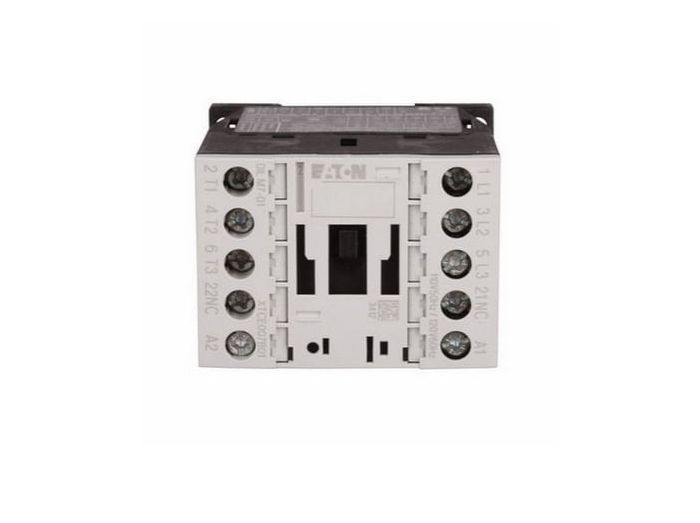

XTCE015B10B Eaton Contactors, XT Series
MFG #:
XTCE015B10B
Eaton XT IEC contactor, 15A, 220 Vac 50 Hz, 240 Vac 60 Hz, 1NO, 15A, Frame B, 45 mm, 50-60 Hz, 1, 2, 3/ 5, 5, 10, 10 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole,, Screw terminals, FVNR
Specifications
| Manufacturer Part Number | XTCE015B10B |
|---|---|
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 240 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | B |
| Auxiliary Contact | 1NO |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 15 A |
| H x W x D | 1.81 " x 2.76 " x 3.07 " |
| Net Weight | 0.5 lbs |
| Gross Weight | 0.5 lbs |
Description
Contactors, XT Series
Item #
XTCE015B10B
Cont 3P FVNR 15A FR B 1NO 220/50 240/60
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
