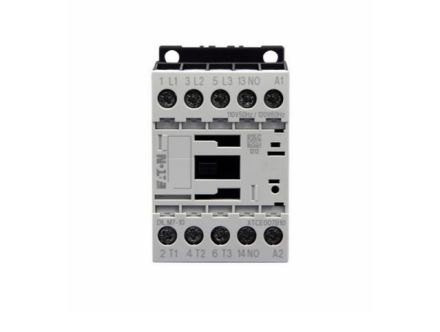

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTCE032C10AD Eaton Contactors, XT Series
MFG #:
XTCE032C10AD
Eaton XT IEC contactor, 32A, 120 Vdc, 1NO, 32A, Frame C, 45 mm, 3, 5, 5/ 10, 10, 20, 25 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing, XT IEC series, Screw terminals, Full voltage non-reversing contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTCE032C10AD |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 125 VDC |
| Coil Voltage | 110-130 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | C |
| Auxiliary Contact | 1NO |
| Termination | Screw |
| General Purpose (AC1) | 40 A |
| UL Motor Switching (AC3) | 32 A |
| H x W x D | 1.85 " x 3.43 " x 3.90 " |
| Net Weight | 1.2 lbs |
| Gross Weight | 1.2 lbs |
Description
Contactors, XT Series
Item #
XTCE032C10AD
Cont 3P FVNR 32A FR C 1NO 110-130VDC
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
