Series

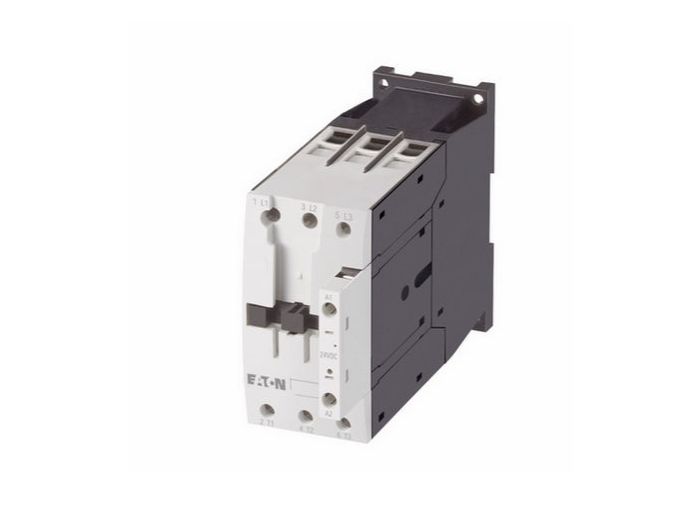

XTCE072D00T Eaton Contactors, XT Series
MFG #:
XTCE072D00T
Eaton XT IEC contactor, 72A, 24 Vac, 50-60 Hz, 0NO-0NC, 72A, Frame D, 55 mm, 50-60 Hz, 5, 10, 15/ 20, 25, 50, 60 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing contactor
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCE072D00T |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 24 VAC |
| Coil Voltage | 24 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Auxiliary Contact | None |
| Termination | Screw |
| UL Motor Switching (AC3) | 72 A |
| H x W x D | 2.76 " x 4.65 " x 5.55 " |
| Net Weight | 2.4 lbs |
| Gross Weight | 2.43 lbs |
Description
Contactors, XT Series
Item #
XTCE072D00T
Cont 3P FVNR 72A FR D 24/50 24/60
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Added to Cart

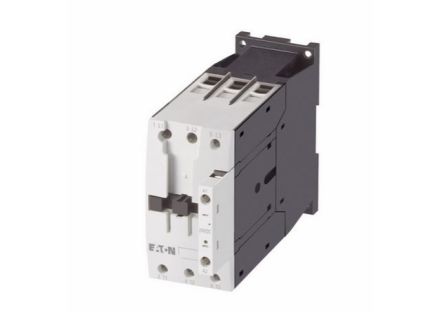

XTCE072D00T Eaton Contactors, XT Series, Cont 3P FVNR 72A FR D 24/50 24/60
