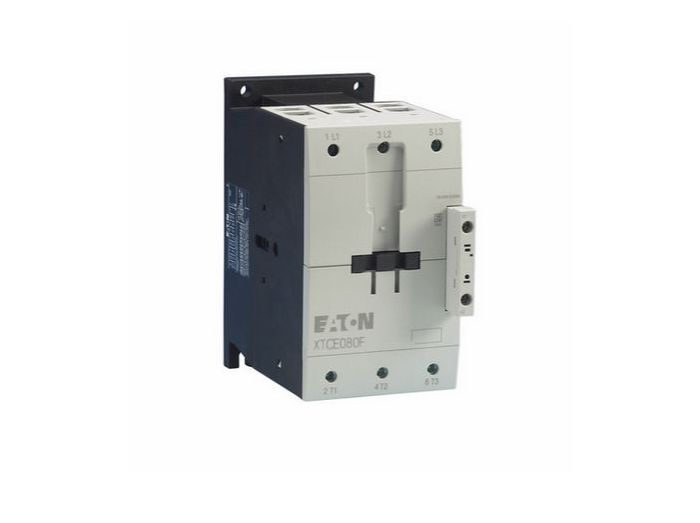

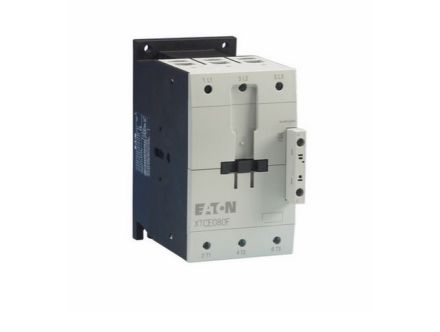

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTCE080F00B Eaton Contactors, XT Series
MFG #:
XTCE080F00B
Eaton XT IEC contactor, 80A, 220 Vac 50 Hz, 240 Vac 60 Hz, 0NO-0NC, 80A, Frame F, 90 mm, 50-60 Hz, 7.5, 15, 15/ 25, 30, 60, 75 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCE080F00B |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 240 VAC |
| Coil Voltage | 240 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | F |
| Auxiliary Contact | None |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 90 A |
| UL Motor Switching (AC3) | 80 A |
| H x W x D | 7.00 " x 4.00 " x 7.25 " |
| Net Weight | 6.2 lbs |
| Gross Weight | 6.23 lbs |
Description
Contactors, XT Series
Item #
XTCE080F00B
Cont 3P FVNR 80A FR F 220/50 240/60
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
