Specifications
| Manufacturer Part Number | EATON-MSAA208210 |
|---|---|
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 480 VAC |
| Coil Voltage | 480 VAC |
| Coil Type | Electronic |
| Poles | 3NO |
| Frame Size | M |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 500 A |
| UL Motor Switching (AC3) | 400 A |
| H x W x D | 8.00 " x 9.92 " x 10.00 " |
| Net Weight | 17.6 lbs |
| Gross Weight | 17.6 lbs |
Description

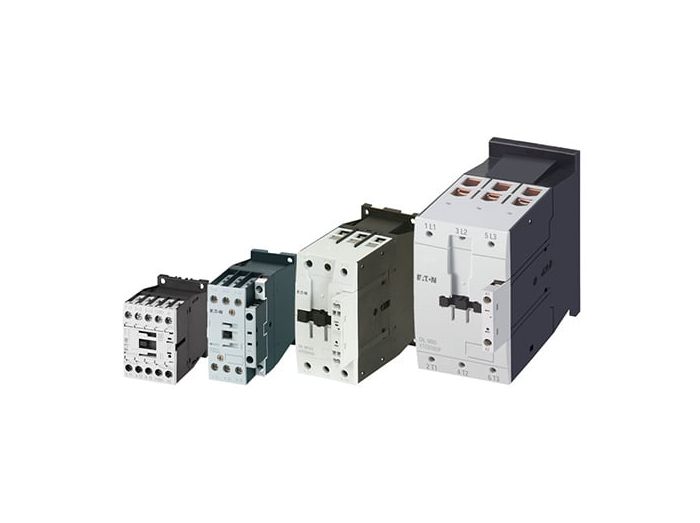

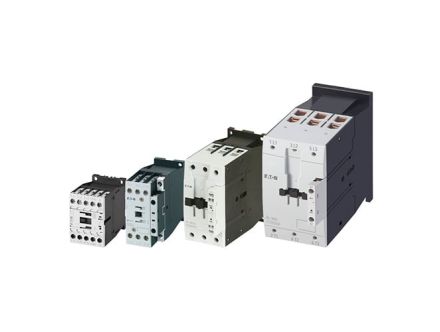

Contactors, XT Series
Item #
XTCE400M22C
CONTACTOR 3P FVNR 400A FRAME M
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Added to Cart
XTCE400M22C Eaton Contactors, XT Series, CONTACTOR 3P FVNR 400A FRAME M
Series XT
MFG #:
EATON-MSAA208210
CONTACTOR 3P FVNR 400A FRAME M 2NO2NC 250-500V AC/DC COIL
