XTCE580N22A
Eaton Contactors, XT Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

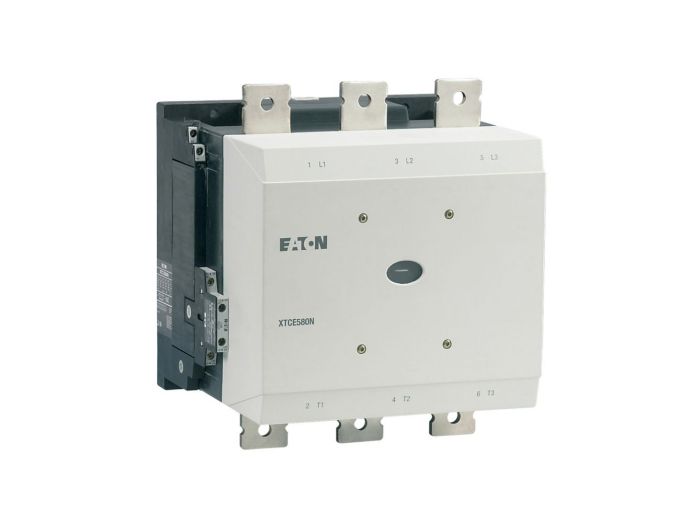

XTCE580N22A Eaton Contactors, XT Series
Cont 3P FVNR 580A FR N 2NO2NC 110-250V A
MFG Item Number
EATON-MSAA208216
Item Number
XTCE580N22A
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Contactors, XT Series
Item #
XTCE580N22A
Cont 3P FVNR 580A FR N 2NO2NC 110-250V A
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | EATON-MSAA208216 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Description | Eaton XT IEC contactor, 630A, 110 Vac 40 Hz, 250 Vac 60 Hz, 2NO-2NC, 580A, Frame N, 250 mm, 40-60 Hz, 200, 200, 400, 600 hp 3PH 200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, FVNR |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Electronic |
| Poles | 3NO |
| Frame Size | N |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 800 A |
| UL Motor Switching (AC3) | 580 A |
| H x W x D | 10.59 " x 11.42 " x 13.19 " |
| Net Weight | 35.3 lbs |
| Gross Weight | 35.3 lbs |
