Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

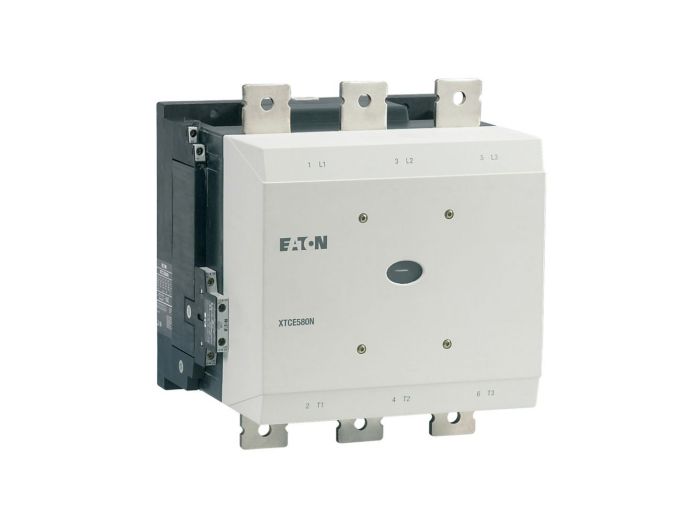

XTCE650N22C Eaton Contactors, XT Series
MFG #:
EATON-MSAA208220
Item Number
XTCE650N22C
Eaton XT IEC contactor, 700A, 250 Vac 40 Hz, 500 Vac 60 Hz, 2NO-2NC, 650A, Frame N, 250 mm, 40-60 Hz, 200, 250, 500, 600 hp 3PH 200, 230, 460, 575 V, Three-pole, Non-reversing, 1041,, Screw terminals, FVNR
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | EATON-MSAA208220 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 480 VAC |
| Coil Voltage | 480 VAC |
| Coil Type | Electronic |
| Poles | 3NO |
| Frame Size | N |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 850 A |
| UL Motor Switching (AC3) | 650 A |
| H x W x D | 10.59 " x 11.42 " x 13.19 " |
| Net Weight | 33.1 lbs |
| Gross Weight | 33.1 lbs |
Description
Contactors, XT Series
Item #
XTCE650N22C
Cont 3P FVNR 650A FR N 2NO2NC 250-500V A
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Added to Cart
XTCE650N22C Eaton Contactors, XT Series, Cont 3P FVNR 650A FR N 2NO2NC 250-500V A
Series XT
MFG #:
EATON-MSAA208220
Eaton XT IEC contactor, 700A, 250 Vac 40 Hz, 500 Vac 60 Hz, 2NO-2NC, 650A, Frame N, 250 mm, 40-60 Hz, 200, 250, 500, 600 hp 3PH 200, 230, 460, 575 V, Three-pole, Non-reversing, 1041,, Screw terminals, FVNR
