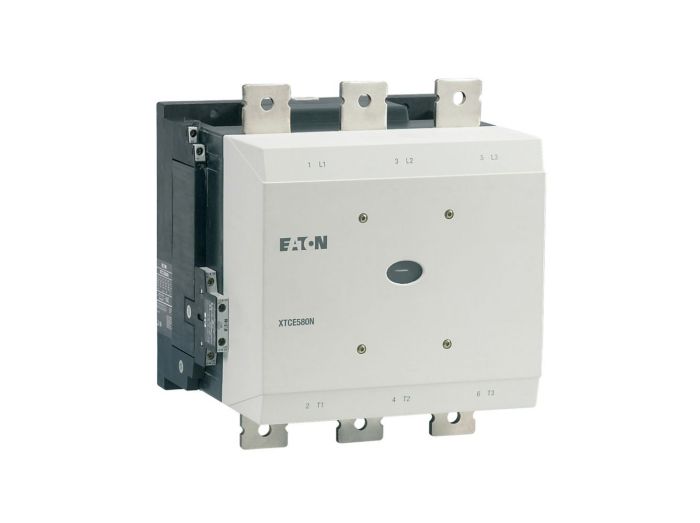

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTCE750N22A Eaton Contactors, XT Series
MFG #:
EATON-MSAA208222
Item Number
XTCE750N22A
Eaton XT IEC contactor, 800A, 110 Vac 40 Hz, 250 Vac 60 Hz, 2NO-2NC, 750A, Frame N, 250 mm, 40-60 Hz, 250, 300, 600, 700 hp 3PH 200, 230, 460, 575 V, Non-reversing, 1102,, Screw terminals, FVNR
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | EATON-MSAA208222 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Electronic |
| Poles | 3NO |
| Frame Size | N |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 900 A |
| UL Motor Switching (AC3) | 750 A |
| H x W x D | 10.59 " x 11.42 " x 13.19 " |
| Net Weight | 36.2 lbs |
| Gross Weight | 36.2 lbs |
Description
Contactors, XT Series
Item #
XTCE750N22A
Cont 3P FVNR 750A FR N 2NO2NC 110-250V A
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
