Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

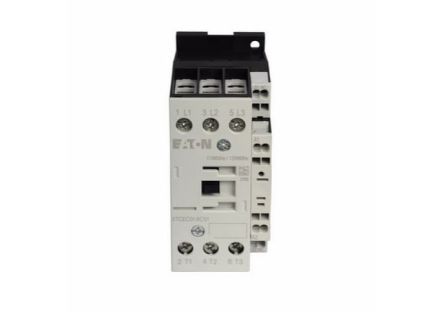

XTCEC018C01AD Eaton Contactors, XT Series
MFG #:
XTCEC018C01AD
Eaton XT IEC contactor, 18A, 120 Vdc, 1NC, 18A, Frame C, 45 mm, 2, 2, 3/ 5, 5, 10, 15 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing, XT IEC series, Spring cage terminals, Full voltage non-reversing contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTCEC018C01AD |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 125 VDC |
| Coil Voltage | 110-130 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | C |
| Auxiliary Contact | 1NC |
| Termination | Spring Cage |
| General Purpose (AC1) | 35 A |
| UL Motor Switching (AC3) | 18 A |
| H x W x D | 1.85 " x 3.43 " x 3.90 " |
| Net Weight | 1.2 lbs |
| Gross Weight | 1.2 lbs |
Description
Contactors, XT Series
Item #
XTCEC018C01AD
Cont 3P FVNR Cg 18A FR C 1NC 110-130VDC
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
