Series

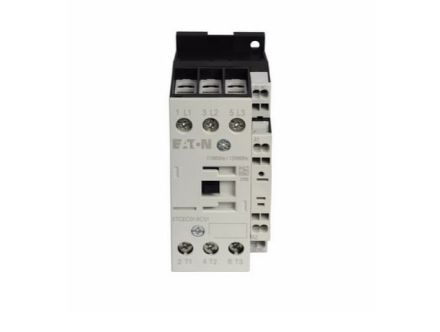

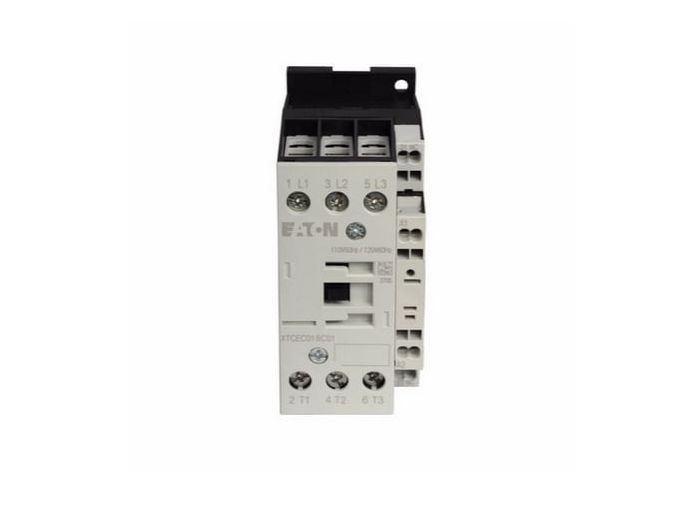

XTCEC018C01G Eaton Contactors, XT Series
MFG #:
XTCEC018C01G
Eaton XT IEC contactor, 18A, 190 Vac 50 Hz, 220 Vac 60 Hz, 1NC, 18A, Frame C, 45 mm, 50-60 Hz, 2, 2, 3/ 5, 5, 10, 15 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Spring cage terminals, FVNR
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCEC018C01G |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 240 VAC |
| Coil Voltage | 220 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | C |
| Auxiliary Contact | 1NC |
| Termination | Spring Cage |
| General Purpose (AC1) | 35 A |
| UL Motor Switching (AC3) | 18 A |
| H x W x D | 1.85 " x 3.43 " x 3.90 " |
| Net Weight | 0.9 lbs |
| Gross Weight | 0.9 lbs |
Description
Contactors, XT Series
Item #
XTCEC018C01G
Cont 3P FVNR Cg 18A FR C 1NC 190/50 220/
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
