Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

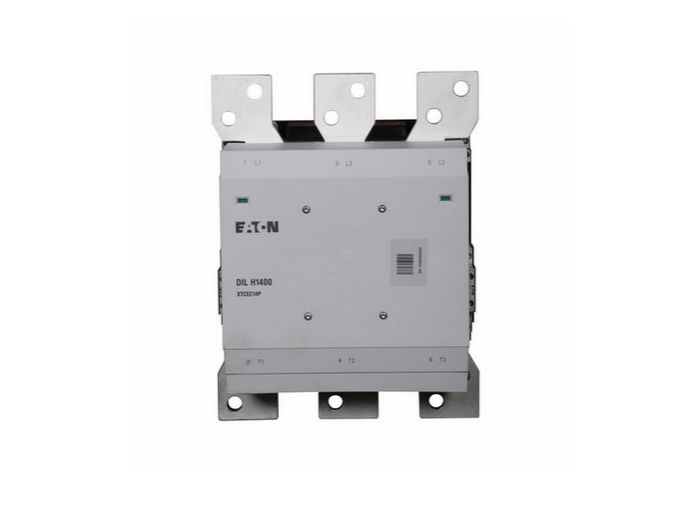

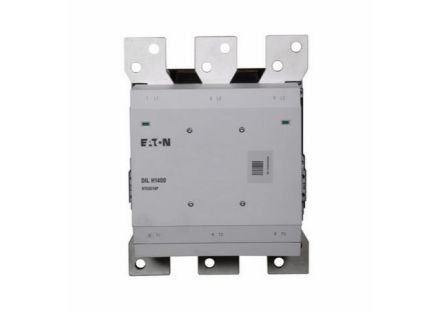

XTCEC14P22B Eaton Contactors, XT Series
MFG #:
EATON-MSAA272441
Item Number
XTCEC14P22B
Eaton XT IEC contactor, 1400A, 230 Vdc 50 Hz, 250 Vdc 60 Hz, 2NO-2NC, 1400A, Frame P, 260 mm, 50-60 Hz, Three-pole, Non-reversing, 1714, XT IEC series, Spring cage terminals, Full voltage non-reversing contactor
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | EATON-MSAA272441 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 240 VAC |
| Coil Voltage | 240 VAC |
| Coil Type | Electronic |
| Poles | 3NO |
| Frame Size | P |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 1,400 A |
| H x W x D | 9.80 " x 15.63 " x 15.63 " |
| Net Weight | 33.1 lbs |
| Gross Weight | 33.1 lbs |
Description
Contactors, XT Series
Item #
XTCEC14P22B
Cont 3P FVNR 1400A FR P 2NO2NC 220-250V
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
