Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

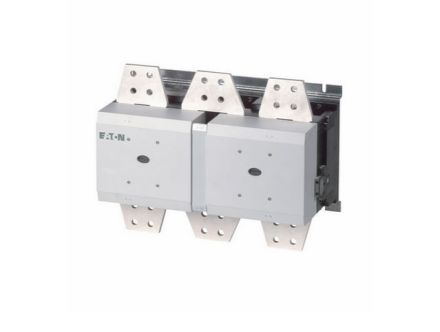

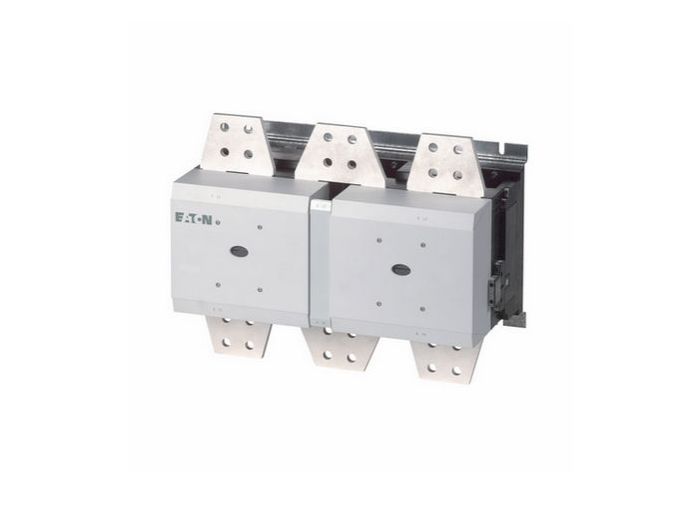

XTCEC20R22B Eaton Contactors, XT Series
MFG #:
EATON-MSAA272442
Item Number
XTCEC20R22B
Eaton XT IEC contactor, 2000A, 230 Vdc 50 Hz, 250 Vdc 60 Hz, 2NO-2NC, 2000A, Frame R, 515 mm, 50-60 Hz, Three-pole, Non-reversing, 2450, XT IEC series, Spring cage terminals, Full voltage non-reversing contactor
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | EATON-MSAA272442 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 240 VAC |
| Coil Voltage | 240 VAC |
| Coil Type | Electronic |
| Poles | 3NO |
| Frame Size | R |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 2,000 A |
| H x W x D | 26.00 " x 21.50 " x 27.50 " |
| Net Weight | 118 lbs |
| Gross Weight | 118 lbs |
Description
Contactors, XT Series
Item #
XTCEC20R22B
Cont 3P FVNR 2000A FR R 2NO2NC 220-250V
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
