Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

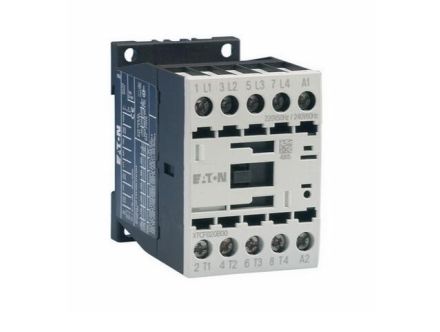

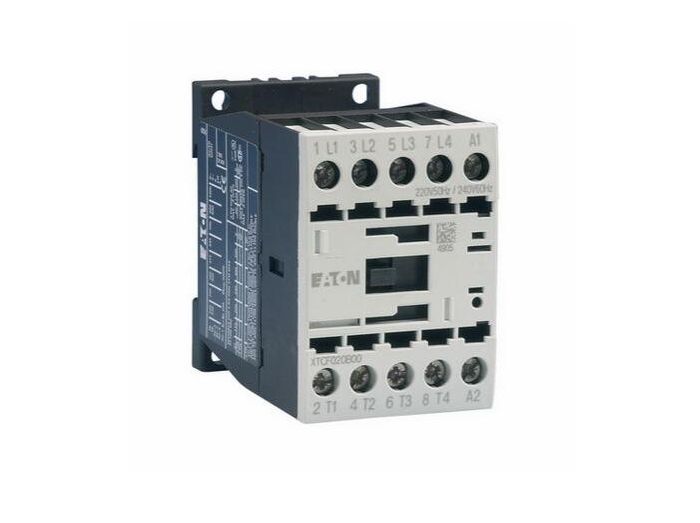

XTCF020B00T Eaton Contactors, XT Series
MFG #:
XTCF020B00T
Eaton XT IEC contactor, 20A, 24 Vac, 50-60 Hz, 0NO-0NC, 20A, Frame B, 45 mm, 50-60 Hz, 1, 2/3, 3, 10, 10 hp 1/3PH 115, 230/200, 230, 460, 575 V, Four-pole, Non-reversing,, Screw terminals, FVNR
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCF020B00T |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 24 VAC |
| Coil Voltage | 24 VAC |
| Coil Type | Magnetic |
| Poles | 4NO |
| Frame Size | B |
| Auxiliary Contact | None |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 12 A |
| H x W x D | 1.81 " x 2.76 " x 3.07 " |
| Net Weight | 0.5 lbs |
| Gross Weight | 0.5 lbs |
Description
Contactors, XT Series
Item #
XTCF020B00T
Cont 4P 20A FRAME B 24/50 24/60 COIL
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
