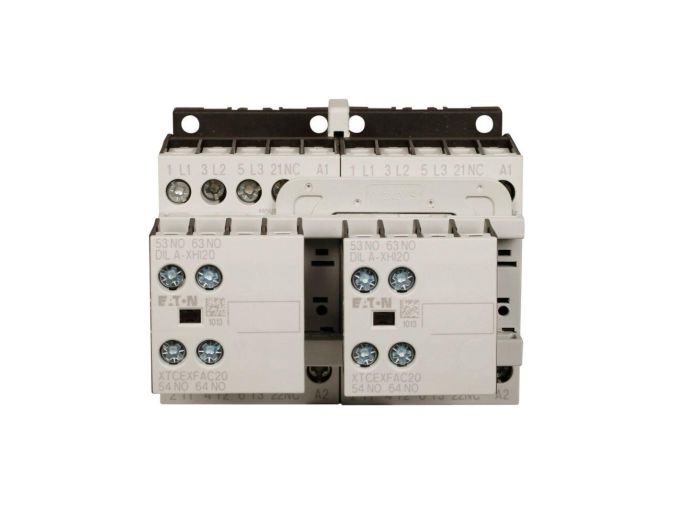

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTCR009B21C Eaton Contactors, XT Series
MFG #:
XTCR009B21C
Eaton XT IEC contactor, 9A, 415 Vac, 50 Hz, 480 Vac, 60 Hz, 2NO-2NO, 9A, Frame B, 45 mm, 50-60 Hz, 0.5, 1.5/ 3, 3, 5, 7.5 hp 1/3PH 115, 230/200, 230, 460, 575 V, Three-pole, Reversing,, Screw terminals, FVR
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCR009B21C |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Reversing IEC |
| Nominal Coil Voltage | 480 VAC |
| Coil Voltage | 480 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | B |
| Auxiliary Contact | 2NO, 1NC |
| Termination | Screw Terminal |
| Overload Relays | C396, XTOB, XTOT |
| UL Motor Switching (AC3) | 9 A |
| H x W x D | 4.00 " x 3.50 " x 5.50 " |
| Net Weight | 1.2 lbs |
| Gross Weight | 1.2 lbs |
Description
Contactors, XT Series
Item #
XTCR009B21C
Cont 3P FVR 9A FR B 2NO1NC 415/50 480/60
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
