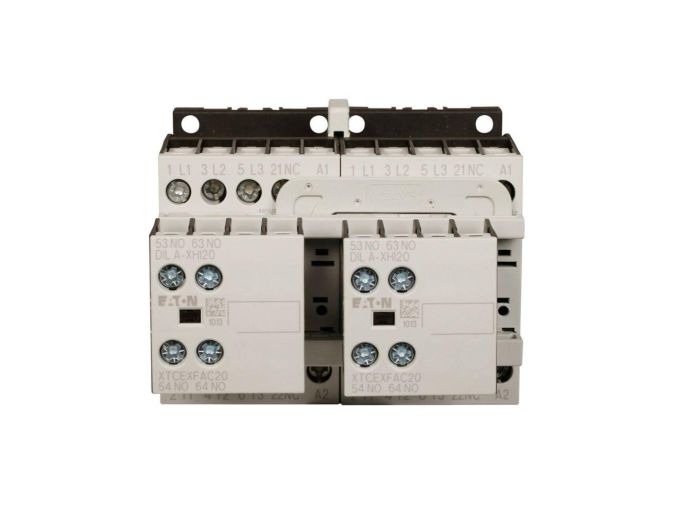

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTCR032C21P Eaton Contactors, XT Series
MFG #:
XTCR032C21P
Eaton XT IEC contactor, 32A, 380 Vac, 60 Hz, 2NO-2NO, 32A, Frame C, 45 mm, 60 Hz, 3, 5/ 10, 10, 20, 25 hp 1/3PH 115, 230/200, 230, 460, 575 V, Three-pole, Reversing, XT IEC series, Screw terminals, Full voltage reversing contactor
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCR032C21P |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Reversing IEC |
| Coil Voltage | 380 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | C |
| Auxiliary Contact | 2NO, 1NC |
| Termination | Screw Terminal |
| Overload Relays | C396, XTOB, XTOT |
| UL Motor Switching (AC3) | 32 A |
| H x W x D | 4.50 " x 4.75 " x 7.50 " |
| Net Weight | 2.4 lbs |
| Gross Weight | 2.45 lbs |
Description
Contactors, XT Series
Item #
XTCR032C21P
Cont 3P FVR 32A FR C 2NO1NC 380/60
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
