Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

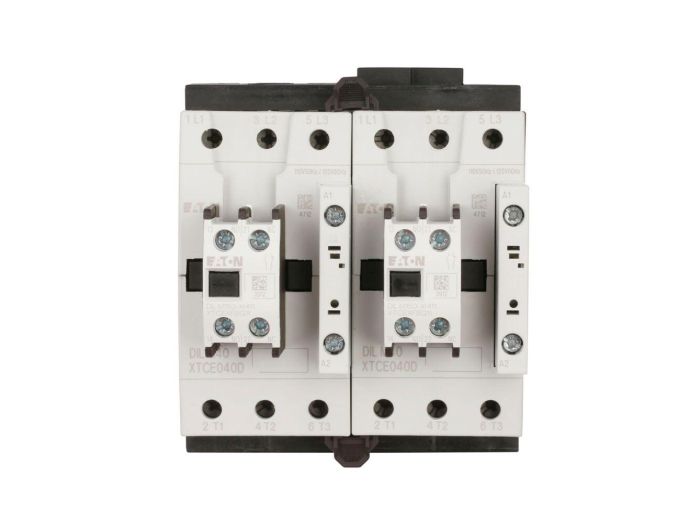

XTCR050D11T Eaton Contactors, XT Series
MFG #:
XTCR050D11T
Eaton XT IEC contactor, 50A, Top-mounted, 24 Vac, 50-60 Hz, 1NO-1NC, 50A, Frame D, 55 mm, 50-60 Hz, 3, 10/ 15, 20, 40, 50 hp 1/3PH 115, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage reversing contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTCR050D11T |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Reversing IEC |
| Nominal Coil Voltage | 24 VAC |
| Coil Voltage | 24 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Screw Terminal |
| Overload Relays | C396, XTOB, XTOT |
| UL Motor Switching (AC3) | 50 A |
| H x W x D | 6.00 " x 6.50 " x 9.50 " |
| Net Weight | 4.7 lbs |
| Gross Weight | 4.7 lbs |
Description
Contactors, XT Series
Item #
XTCR050D11T
Cont 3P FVR 50A FR D 1NO1NC 24/50 24/60
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links

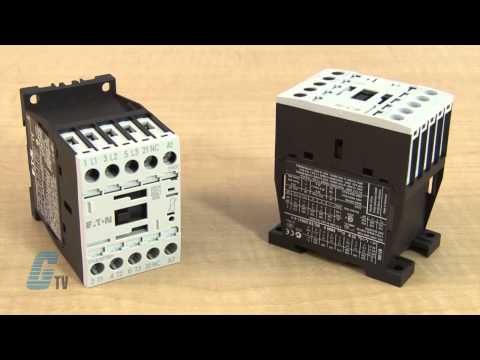

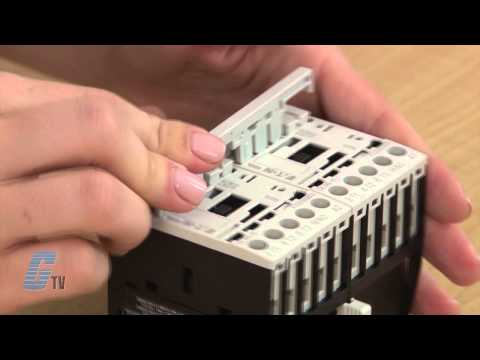

Videos
