Series

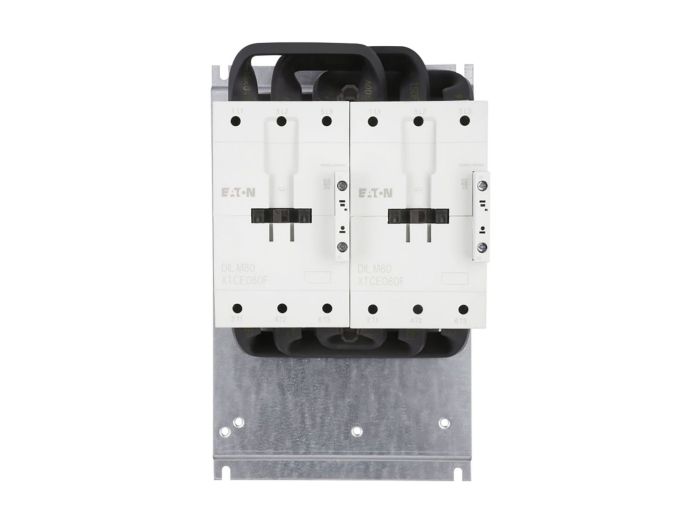

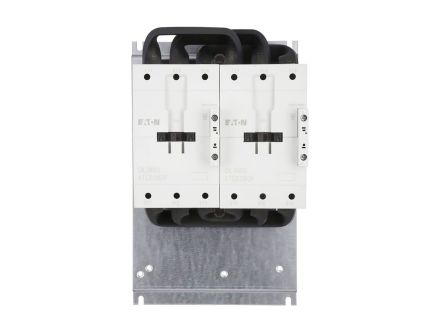

XTCR080F11A Eaton Contactors, XT Series
MFG #:
EATON-3-1920-001B
Item Number
XTCR080F11A
Eaton XT IEC contactor, 80A, Top-mounted, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO-1NC, 80A, Frame F, 90 mm, 50-60 Hz, 7.5, 15/ 25, 30, 60, 75 hp 1/3PH 115, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVR
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | EATON-3-1920-001B |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Type | AC Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | F |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Screw Terminal |
| Overload Relays | C396, XTOB, XTOT |
| UL Motor Switching (AC3) | 80 A |
| H x W x D | 6.14 " x 5.08 " x 6.54 " |
| Net Weight | 9.8 lbs |
| Gross Weight | 9.8 lbs |
Description
Contactors, XT Series
Item #
XTCR080F11A
Cont 3P FVR 80A FR F 1NO1NC 110/50 120/6
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
