Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTFC040DDWD |
| Manufacturer | Eaton |
| Product Series | XTFC |
| Family Series | Eaton Manual Motor Controllers, XTFC Series |
| Current Rating | 40 A |
| FLA Adjustment Range | 32-40 |
| Voltage | 48 VDC |
| Reversing | No |
| Frame Size-MMP | D |
| Frame Size-Contactor | D |
| Approvals | CE, UL |
| H x W x D | 6.50 " x 8.50 " x 12.25 " |
| Net Weight | 5.8 lbs |
| Gross Weight | 5.8 lbs |
Description
Manual Motor Controllers, XTFC Series
Item #
XTFC040DDWD
CMC TY F FVNR 32-40A D-MMP D-CONT 48-60V
XTFC Series Information
- Visible Trip Indication
- Test Trip Function
- Class 10 Overload Protection
- Built‑in Heater and Magnetic Trip Elements to Protect the Motor
- Control Inputs Located at Front of Starter for Easy Access and Wiring
The UL 508 Type F labeled combination motor controller (CMC) includes a line side adapter (LSA). These assembled combination motor controllers cover motors with FLA ratings from 0.10A to 65A.
- Wide Range of Coils
- Adjustment Dial for Setting Motor FLA
- 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
Documents & Resources Links
Videos
Added to Cart

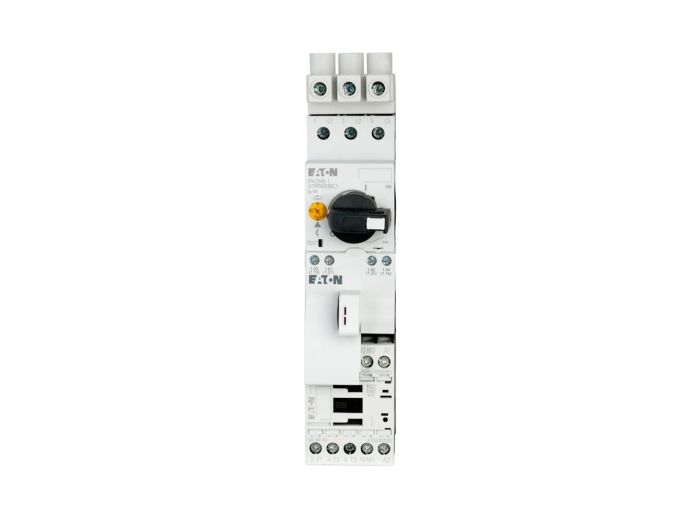

XTFC040DDWD Eaton Manual Motor Controllers, XTFC Series, CMC TY F FVNR 32-40A D-MMP D-CONT 48-60V
Series XTFC
MFG #:
XTFC040DDWD
UL 508 Type F - XT IEC FVNR Combination Motor Controller, 40A, 55 mm Frame size, 48 Vdc coil
