Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

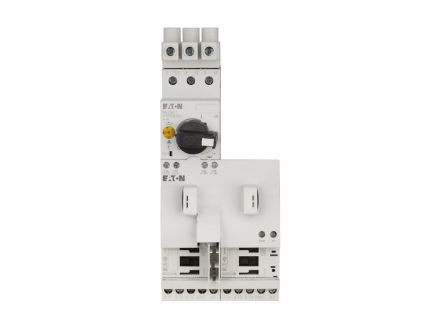

XTFR020BCL Eaton Manual Motor Controllers, XTFR Series
MFG #:
XTFR020BCL
UL 508 Type F - XT IEC FVR Combination Motor Controller, 20A, 45 mm Frame size, 380V 50 Hz, 440V 60 Hz coil
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTFR020BCL |
| Manufacturer | Eaton |
| Product Series | XTFR |
| Family Series | Eaton Manual Motor Controllers, XTFR Series |
| Current Rating | 20 A |
| FLA Adjustment Range | 16-20 |
| Voltage | 380 VAC 50 Hz, 440 VAC 60 Hz |
| Reversing | Yes |
| Frame Size-MMP | B |
| Frame Size-Contactor | C |
| Approvals | CE, UL |
| H x W x D | 0.01 " x 0.01 " x 0.01 " |
| Net Weight | 0.01 lbs |
| Gross Weight | 0.01 lbs |
Description
Manual Motor Controllers, XTFR Series
Item #
XTFR020BCL
CMC TYPE F FVR 16-20A B-MMP C-CONT
XTFR Series Information
- Visible Trip Indication
- Test Trip Function
- Class 10 Overload Protection
- Built‑in Heater and Magnetic Trip Elements to Protect the Motor
- Control Inputs Located at Front of Starter for Easy Access and Wiring
The UL 508 Type F labeled combination motor controller (CMC) includes a line side adapter (LSA). These assembled combination motor controllers cover motors with FLA ratings from 0.10A to 65A.
- Wide Range of Coils
- Adjustment Dial for Setting Motor FLA
- 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
