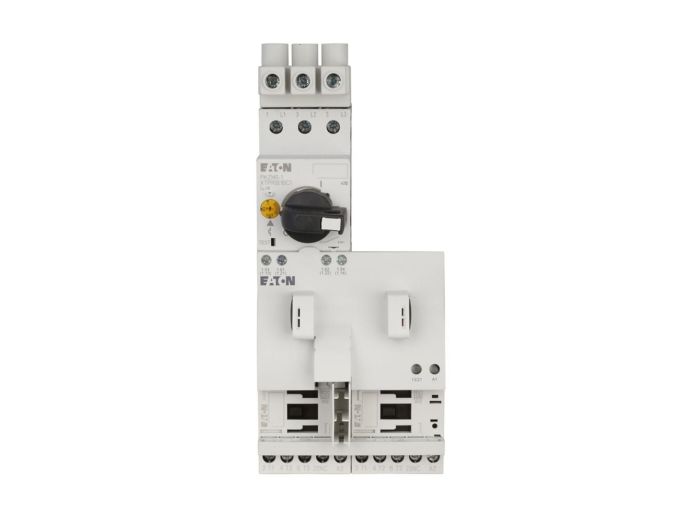

Name: XTFR2P5BCP Eaton Manual Motor Controllers, XTFR Series
Brand: Eaton
SKU: XTFR2P5BCP-CHGP
Price: 718.21 USD
Availability: BackOrder

Specifications

Specifications
Country of Origin	Germany
Manufacturer Part Number	XTFR2P5BCP
Manufacturer	Eaton
Product Series	XTFR
Family Series	Eaton Manual Motor Controllers, XTFR Series
Current Rating	2.5 A
FLA Adjustment Range	1.6-2.5
Voltage	380 VAC 60 Hz
Reversing	Yes
Frame Size-MMP	B
Frame Size-Contactor	C
Approvals	CE, UL
H x W x D	0.01 " x 0.01 " x 0.01 "
Net Weight	0.01 lbs
Gross Weight	0.01 lbs

Description

Manual Motor Controllers, XTFR Series

Item #

XTFR2P5BCP

CMC TYP F FVR 1.6-2.5A B-MMP C-Cont 380/

XTFR Series Information

Visible Trip Indication
Test Trip Function
Class 10 Overload Protection
Built‑in Heater and Magnetic Trip Elements to Protect the Motor
Control Inputs Located at Front of Starter for Easy Access and Wiring

Eaton's XT IEC open reversing manual motor controllers combine a manual motor protector with an IEC contactor(s) to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short‑circuit protection and remote control operation in one compact, assembled unit. These assembled manual motor controllers cover motors with FLA ratings from 0.10A to 65A.

The UL 508 Type F labeled combination motor controller (CMC) includes a line side adapter (LSA). These assembled combination motor controllers cover motors with FLA ratings from 0.10A to 65A.

Wide Range of Coils
Adjustment Dial for Setting Motor FLA
1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
