XTFRP63BBTD Eaton Manual Motor Controllers, XTFR Series
CMC TYP F FVR .4-.63A B-MMP B-Cont 24VDC
MFG Item Number
XTFRP63BBTD
Eaton

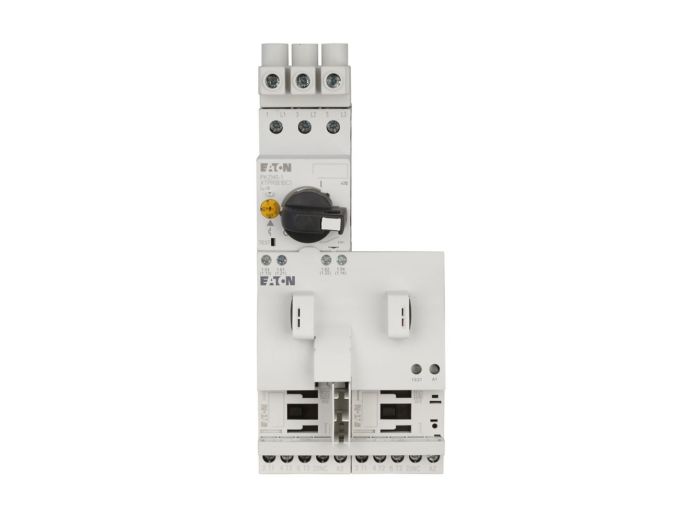

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

XTFRP63BBTD Eaton Manual Motor Controllers, XTFR Series

CMC TYP F FVR .4-.63A B-MMP B-Cont 24VDC
MFG Item Number
XTFRP63BBTD
Eaton
Series
XTFR
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Manual Motor Controllers, XTFR Series
Item #
XTFRP63BBTD
CMC TYP F FVR .4-.63A B-MMP B-Cont 24VDC

XTFR Series Information

  • Visible Trip Indication
  • Test Trip Function
  • Class 10 Overload Protection
  • Built‑in Heater and Magnetic Trip Elements to Protect the Motor
  • Control Inputs Located at Front of Starter for Easy Access and Wiring
Eaton's XT IEC open reversing manual motor controllers combine a manual motor protector with an IEC contactor(s) to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short‑circuit protection and remote control operation in one compact, assembled unit. These assembled manual motor controllers cover motors with FLA ratings from 0.10A to 65A.

The UL 508 Type F labeled combination motor controller (CMC) includes a line side adapter (LSA). These assembled combination motor controllers cover motors with FLA ratings from 0.10A to 65A.

  • Wide Range of Coils
  • Adjustment Dial for Setting Motor FLA
  • 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller

Links

Videos

Specifications

Specifications
Country of Origin Germany
Manufacturer Part Number XTFRP63BBTD
Manufacturer Eaton
Product Series XTFR
Family Series Eaton Manual Motor Controllers, XTFR Series
Description Eaton XT IEC motor control, UL 508 Type F - XT IEC FVR Combination Motor Controller, 0.63A, 45 mm Frame size, 24 Vdc coil
Current Rating 0.63 A
FLA Adjustment Range 0.4-0.63
Voltage 24 VDC
Reversing Yes
Frame Size-MMP B
Frame Size-Contactor B
Approvals CE, UL
H x W x D 3.80 " x 3.55 " x 8.45 "
Net Weight 2.325 lbs
Gross Weight 2.7 lbs
