Specifications
| Manufacturer Part Number | XTMC6A01B |
|---|---|
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 240 VAC |
| Coil Voltage | 240 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NC |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 6.6 A |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description
Contactors, XT Series
Item #
XTMC6A01B

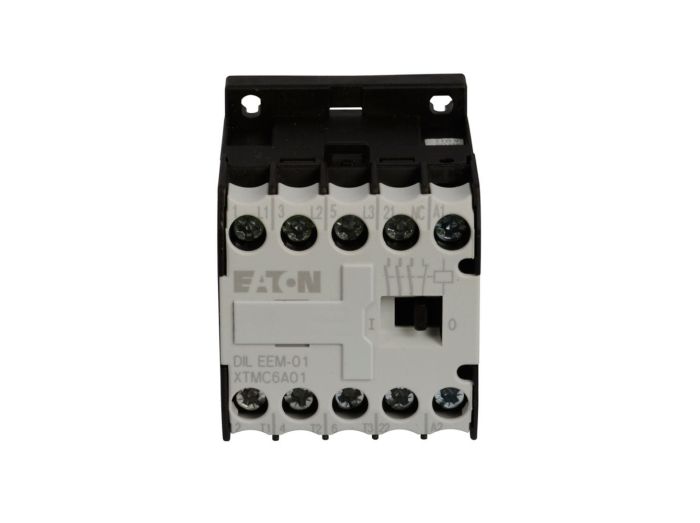

Mini Contactor, 3-P N/O, 240VAC Coil
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Nominal Coil Voltage | Price | Action |
|---|---|---|---|---|---|---|
|
CWC09-01-30V24 | Contactor, 3-P N/O, 240VAC, 9A, Mini Includes 1NC Aux Contact, Open Frame Ith=20A | CWC | 240 VAC |
Price unavailable
|
|
|
B7-30-01-80 | The B7-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, | B | 240 VAC |
Price unavailable
|
|
|
CWC012-01-30V24 | Mini Contactor, 3-P N/O, 208-240VAC Coil, Includes 1NC Aux Contact, AC1=22A, AC3=12A | CWC | 240 VAC |
Price unavailable
|
|
|
CWC016-01-30V24 | Mini Contactor, 3-P N/O, 208-240VAC Coil, Includes 1NC Aux Contact, AC1=22A, AC3=16A | CWC | 240 VAC |
Price unavailable
|
|
|
CWC07-01-30V24 | Mini Contactor, 3-P N/O, 208-240VAC Coil, Includes 1NC Aux Contact, AC1=18A, AC3=7A | CWC | 240 VAC |
Price unavailable
|
Added to Cart

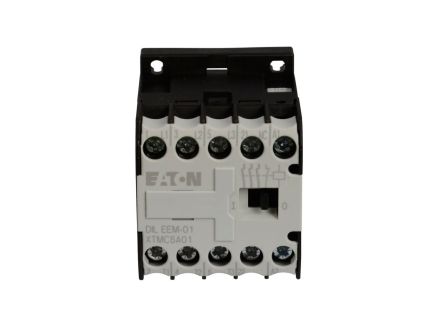

XTMC6A01B Eaton Contactors, XT Series, Mini Contactor, 3-P N/O, 240VAC Coil
Series XT
MFG #:
XTMC6A01B
Mini Contactor, 3-P N/O, 240VAC Coil Inclft.s 1NC Aux Contact, Screw Term, AC1=20A, AC3=6.6A, (220V 50Hz)
