Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

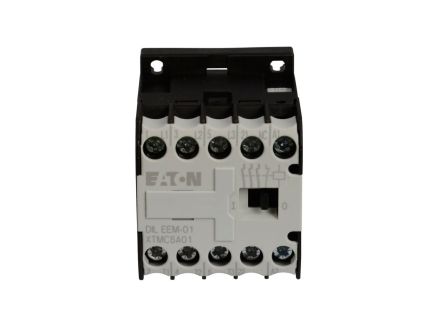

XTMC6A01RD Eaton Contactors, XT Series
MFG #:
XTMC6A01RD
Eaton XT IEC mini contactor, 6.60A, 12 Vdc, 1NC, 20A, 45 mm mini, 0.25, 0.75, 1/ 1.5, 2, 3, 3 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing mini contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTMC6A01RD |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 12 VDC |
| Coil Voltage | 12 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NC |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 6.6 A |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.5 lbs |
| Gross Weight | 0.5 lbs |
Description
Contactors, XT Series
Item #
XTMC6A01RD
MINI Cont 3P FVNR 6A FR A 1NC 12VDC
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Nominal Coil Voltage | Price | Action |
|---|---|---|---|---|---|---|
|
BC7-30-01-07 | The BC7-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential | BC | 12 VDC |
Price unavailable
|
|
|
CWC012-01-30C02 | Mini Contactor, 3-P N/O, 12VDC Coil, Includes 1NC Aux Contact, AC1=22A, AC3=12A | CWC | 12 VDC |
Price unavailable
|
|
|
XTMC9A01RD | Eaton XT IEC mini contactor, 8.80A, 12 Vdc, 1NC, 20A, 45 mm mini, 0.5, 1, 1.5/ 2, 3, 5, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, Full voltage non-reversing mini contactor | XT | 12 VDC |
Price unavailable
|
