Specifications
| Manufacturer Part Number | XTMC6A10L |
|---|---|
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 480 VAC |
| Coil Voltage | 440 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NO |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 6.6 A |
| H x W x D | 1.54 " x 0.94 " x 1.81 " |
| Net Weight | 0 lbs |
| Gross Weight | 0.07 lbs |
Description
Contactors, XT Series
Item #

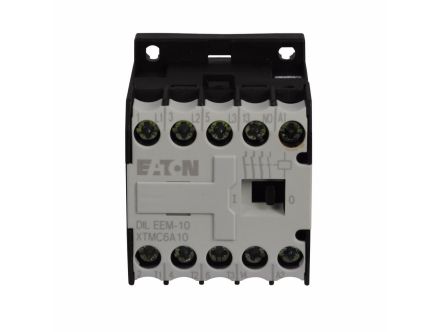

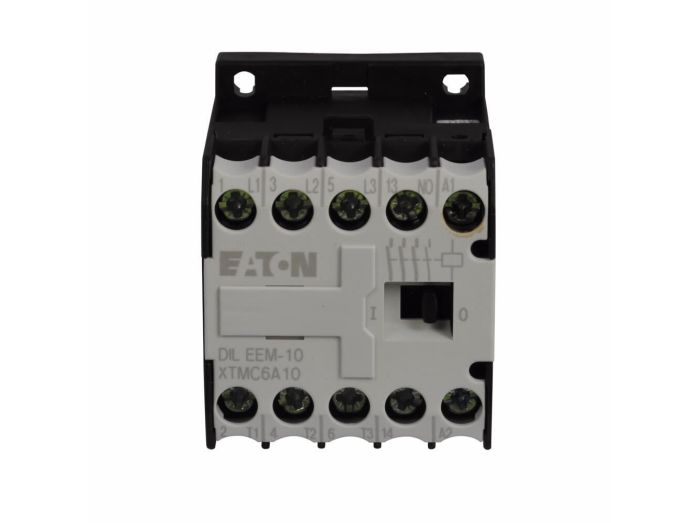

XTMC6A10L
Mini Contactor, 3-P N/O, 440VAC Coil
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Nominal Coil Voltage | Price | Action |
|---|---|---|---|---|---|---|
|
XTMC9A10L | Eaton XT IEC mini contactor, 8.80A, 380 Vac 50 Hz, 440 Vac 60 Hz, 1NO, 20A, 45 mm mini, 50-60 Hz, 0.5, 1, 1.5/ 2, 3, 5, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR | XT | 480 VAC |
Price unavailable
|
Added to Cart
XTMC6A10L Eaton Contactors, XT Series, Mini Contactor, 3-P N/O, 440VAC Coil
Series XT
MFG #:
XTMC6A10L
Mini Contactor, 3-P N/O, 440VAC Coil Inclft.s 1NO Aux Contact, Screw Term, AC1=20A, AC3=6.6A, (380V 50Hz)
Alternatives
XTMC9A10L Eaton Contactors, XT Series
Series XT
Series XT
MFG #:
EATON-MSAA051787
Eaton XT IEC mini contactor, 8.80A, 380 Vac 50 Hz, 440 Vac 60 Hz, 1NO, 20A, 45 mm mini, 50-60 Hz, 0.5, 1, 1.5/ 2, 3, 5, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR
View More Details
