Specifications
| Manufacturer Part Number | XTMC9A01L |
|---|---|
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 480 VAC |
| Coil Voltage | 440 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NC |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 8.8 A |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description

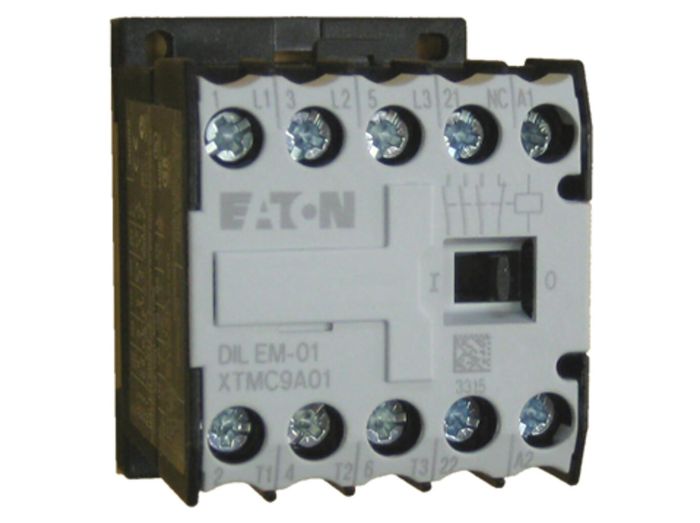

Contactors, XT Series
Item #
XTMC9A01L
Mini Contactor, 3-P N/O, 440VAC Coil
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Added to Cart

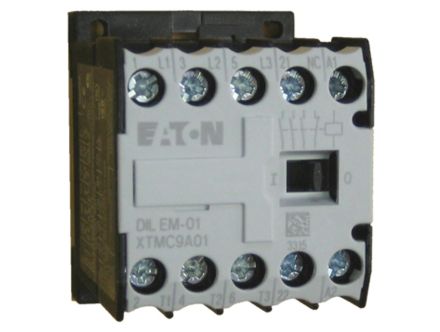

XTMC9A01L Eaton Contactors, XT Series, Mini Contactor, 3-P N/O, 440VAC Coil
Series XT
MFG #:
XTMC9A01L
Mini Contactor, 3-P N/O, 440VAC Coil Inclft.s 1NC Aux Contact, Screw Term, AC1=20A, AC3=8.8A, (380V 50Hz)
