Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

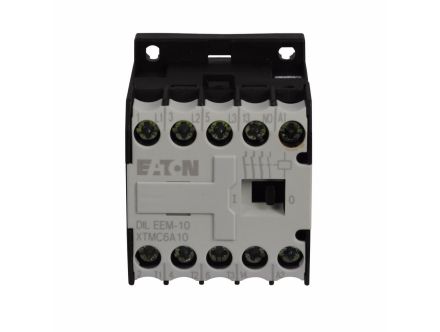

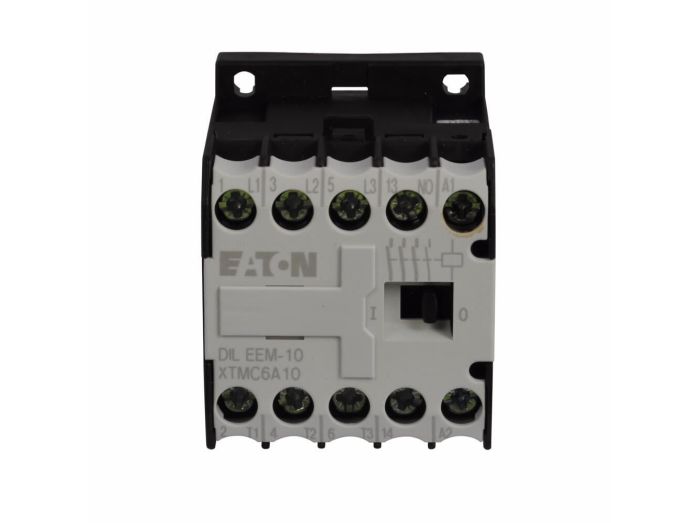

XTMC9A10A Eaton Contactors, XT Series
MFG #:
XTMC9A10A
Eaton XT IEC mini contactor, 8.80A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 20A, 45 mm mini, 50-60 Hz, 0.5, 1, 1.5/ 2, 3, 5, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR
Specifications
| Manufacturer Part Number | XTMC9A10A |
|---|---|
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NO |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 8.8 A |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description
Contactors, XT Series
Item #
XTMC9A10A
MINI Cont 3P FVNR 9A FR A 1NO 110/50 120
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Nominal Coil Voltage | Price | Action |
|---|---|---|---|---|---|---|
|
B7-30-10-84 | The B7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, | B | 120 VAC |
Price unavailable
|
|
|
CWC012-10-30V18 | Mini Contactor, 3-P N/O, 120VAC Coil, Includes 1NO Aux Contact, AC1=22A, AC3=12A | CWC | 120 VAC |
Price unavailable
|
|
|
CWC016-10-30V18 | Mini Contactor, 3-P N/O, 120VAC Coil, Includes 1NO Aux Contact, AC1=22A, AC3=16A | CWC | 120 VAC |
Price unavailable
|
