Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

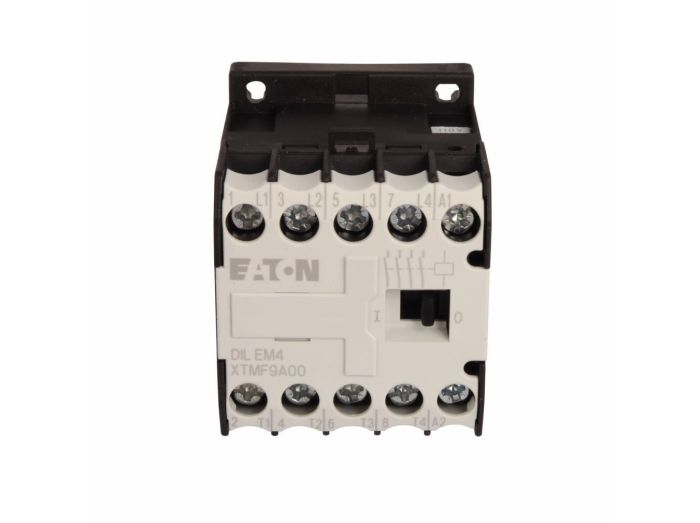

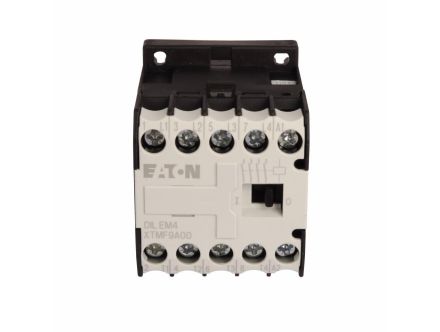

XTMF9A00TD Eaton Contactors, XT Series
MFG #:
XTMF9A00TD
Eaton XT IEC mini contactor, 8.80A, 24 Vdc, 0NO-0NC, 20A, 45 mm mini, Four-pole, Non-reversing, XT IEC series, Screw terminals, Full voltage non-reversing mini contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTMF9A00TD |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 24 VDC |
| Coil Voltage | 24 VDC |
| Coil Type | Magnetic |
| Poles | 4NO |
| Auxiliary Contact | None |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 8.8 A |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.5 lbs |
| Gross Weight | 0.5 lbs |
Description
Contactors, XT Series
Item #
XTMF9A00TD
MINI CONTACTOR 4P 9A FRAME A 24VDC COIL
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
