Series

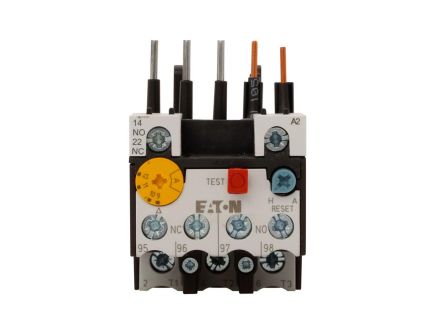

XTOB012BC1 Eaton Overload Relays, XTOB Series
MFG #:
XTOB012BC1
Eaton XT IEC bimetallic overload relay, 9-12A overload range, 45 mm Frame size, 1NO-1NC contact configuration, Direct to contactor mounting, used with 9-15A contactor, 10A trip type
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTOB012BC1 |
| Manufacturer | Eaton |
| Product Series | XTOB |
| Family Series | Eaton Overload Relays, XTOB Series |
| Type | Bimetallic |
| Current Rating | 9-12 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Wire |
| Ambient Temperature | -13-131 °F |
| Approvals | ATEX, CE, CSA, UL |
| Comments | Direct Mounting to XT Series B Frame Contactor |
| H x W x D | 1.81 " x 2.84 " x 3.82 " |
| Net Weight | 0.3 lbs |
| Gross Weight | 0.3 lbs |
Description
Overload Relays, XTOB Series
Item #
XTOB012BC1
IEC OVLR FRAME B CLASS 10 9-12A
XTOB Series Information
- Direct Connect up to 250 Amps
- Large Thermal Overcurrent Range
- Stand Alone and CT Type up to 630 Amps
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Temperature Range | Series | Price | Action |
|---|---|---|---|---|---|---|
|
XTOE020BCS | Eaton C440 electronic overload relay, XT IEC Electronic Overload Relay, 4-20A overload range, 45 mm Frame size, NO-NC contact configuration, Direct to contactor mounting, Selectable - 10A, 10, 20, 30 trip type | -13-149 °F | XT |
Price unavailable
|
