XTOE020CGSS
Eaton Overload Relays, XT Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

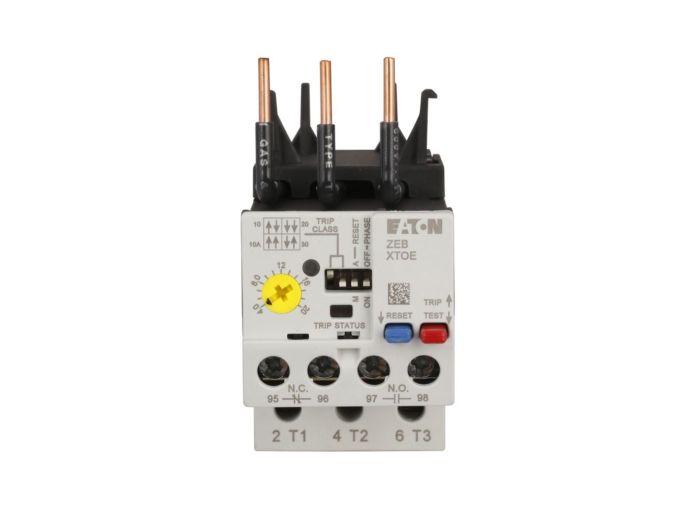

XTOE020CGSS Eaton Overload Relays, XT Series
XTOE OL 4-20A IEC STAND ALONE GND FLT
MFG Item Number
XTOE020CGSS
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Overload Relays, XT Series
Item #
XTOE020CGSS
XTOE OL 4-20A IEC STAND ALONE GND FLT
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | XTOE020CGSS |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Overload Relays, XT Series |
| Description | Eaton C440 electronic overload relay, XT Electronic Overload Relay - IEC, 4-20A, Ground fault with selectable class 10, 20, 45mm frame |
| Current Rating | 4-20 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10, Class 20, Class 30 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -13-149 °F |
| Approvals | CE, CSA, UL |
| H x W x D | 6.50 " x 3.00 " x 7.50 " |
| Net Weight | 0.8 lbs |
| Gross Weight | 0.87 lbs |
