Series

XTMMP

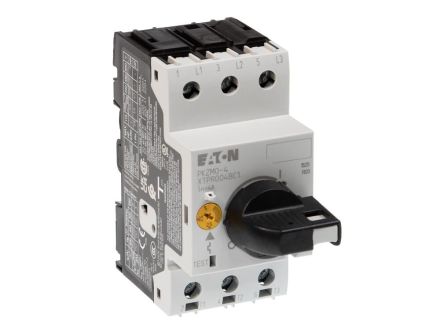

XTPR004BC1 Eaton Manual Motor Protectors, XTMMP Series

MFG #:

XTPR004BC1

Eaton IEC motor control Manual Motor Protector, 4A, 45 mm Frame size, Class 10 trip type, Rotary type.

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

XTMMP

XTPR004BC1 Eaton Manual Motor Protectors, XTMMP Series

Name: XTPR004BC1 Eaton Manual Motor Protectors, XTMMP Series
Brand: Eaton
SKU: XTPR004BC1-CHGP
Price: 184.79 USD
Availability: InStock

MFG #:

XTPR004BC1

Eaton IEC motor control Manual Motor Protector, 4A, 45 mm Frame size, Class 10 trip type, Rotary type.

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Country of Origin	Germany
Manufacturer Part Number	XTPR004BC1
Manufacturer	Eaton
Product Series	XTMMP
Family Series	Eaton Manual Motor Protectors, XTMMP Series
Current Rating	4 A
FLA Adjustment Range	2.5-4
Phase	3
Poles	3
Trip Class	Class 10
Protection Rating	IP20
Approvals	CE, CSA, UL
H x W x D	3.60 " x 1.75 " x 3.80 "
Net Weight	0.655 lbs
Gross Weight	0.7 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Series	Current Rating	Price	Action
	MS116-4.0	Manual Motor Protector, 2.5-4.0A, Rotary Handle, Class 10, 1SAM250000R1008	MS	16 A	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	SKU	Price
XTPAXENAS55B	XT Manual Motor Protection Accessories - Insulated Enclosure, used with Frame B XTPR only or with: XTPAXSA_ and XTPAXFA_, XTPAXUVR_ and XTPAXFA_, XTPAXSR_ and XTPAXFA_, XTPAXCL, IP65 enclosure	Eaton Contactors	XTPAXENAS55B-CHGP	Price unavailable
XTPAXENCS55B	Eaton motor control enclosure, MMP ACCESSORY ENCLOSURE-IEC IP55 BLK, XT Manual Motor Protection Accessories - Insulated Enclosure, used with Frame B XTPR only or with: XTPAXFA_, XTPAXSA_, XTPAXUVR_, XTPAXSR_, XTPAXCL, IP55 enclosure	Eaton Starters	XTPAXENCS55B-CHGP	Price unavailable
XTPAXENCS65B	Eaton XT Manual motor protection accessories - insulated enclosure, used with Frame B XTPR only or with: XTPAXFA, XTPAXSA, XTPAXUVR, XTPAXSR, XTPAXCL, IP65 enclosure	Eaton Starters	XTPAXENCS65B-CHGP	Price unavailable
XTPAXFA11	Eaton Auxiliary contact Motor protection accessories, 1NO-1NC contact configuration	Eaton Starters	XTPAXFA11-CHGP	Price unavailable
XTPAXFAC10	XT Manual Motor Protection Accessories - Auxiliary Contact, 1NO-0NC contact configuration	Eaton Starters	XTPAXFAC10-CHGP	Price unavailable
XTPAXLSA	Eaton XT IEC motor control, - Line-Side Adapter, B Frame size, used with XTPR to create a UL 508 Type E/F manual combination starter	Eaton Starters	XTPAXLSA-CHGP	Price unavailable
XTPAXSA11	XT Manual Motor Protection Accessories - Auxiliary Contact, 1NO-1NC contact configuration	Eaton Starters	XTPAXSA11-CHGP	Price unavailable
XTPAXSA12	XT Manual Motor Protection Accessories - Auxiliary Contact, 1NO-2NC contact configuration	Eaton Starters	XTPAXSA12-CHGP	Price unavailable
XTPAXSA21	XT Manual Motor Protection Accessories - Auxiliary Contact, 2NO-1NC contact configuration	Eaton Starters	XTPAXSA21-CHGP	Price unavailable
XTPAXSATR02	XT Manual Motor Protection Accessories - Indicating Auxiliary Contact, 2NC contact configuration	Eaton Starters	XTPAXSATR02-CHGP	Price unavailable
XTPAXSATR20	XT Manual Motor Protection Accessories - Indicating Auxiliary Contact, 2NO contact configuration	Eaton Starters	XTPAXSATR20-CHGP	Price unavailable
