XTRM10A22TD
Eaton Control Relays, XT Series

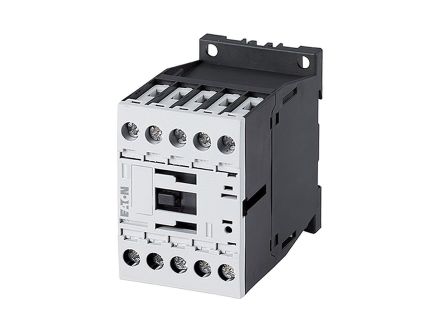

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
XTRM10A22TD Eaton Control Relays, XT Series
MINI ctl rl 10A FR A 2NO2NC 24VDC
MFG Item Number
XTRM10A22TD
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Control Relays, XT Series
Item #
XTRM10A22TD
MINI ctl rl 10A FR A 2NO2NC 24VDC
XT Series Information
- For Use with Mini and Standard Frame Size Contactors and Starters
- Control Relays ‑ AC Control from 12V to 550V 50Hz, 600V 60HZ; DC Control from 12V to 220V
- Available with Screw or Spring Cage Terminals
- Four‑pole Configurations
- IP20 Finger and Back‑of‑Hand Proof
Eaton's new line of XT relays and timers includes mini and standard frame control relays and auxiliary contacts, mini electronic on‑delay and multi‑function timers and an electronic star‑delta (wye‑delta) timer for use in star‑delta (wye‑delta) combinations. Because XT meets UL®, CSA® and CE standards, it is the perfect product solution for IEC applications all over the world. The compact, space saving and easy to install XT line of IEC contactors and starters is the efficient and effective solution for customer applications.
- Large Ambient Temperature Range: ‑25° to 50°C [‑13° to 122°F]
- The XTRE Control Relays have Positively Driven Contacts between the Relay and the Auxiliary Contact Modules as well as within the Auxiliary Contact Modules
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTRM10A22TD |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Control Relays, XT Series |
| Description | XT IEC Miniature Control Relay, Screw terminals, 45 mm - mini Frame size, 2NO-2NC contact configuration, 24 Vdc coil, 10A conventional thermal rating, 6A at 220/230/240V; 3A at 380/400/415V rated operational voltage |
| Nominal Voltage | 24 VDC |
| Voltage | 24 VDC |
| Number of Poles | 4 |
| Contact Configuration | 2NO, 2NC |
| Thermal Current Rating | 10 A |
| Termination | Screw |
| Mounting | DIN Rail, Screw |
| Approvals | CE, CSA, UL |
| H x W x D | 2.20 " x 1.80 " x 2.30 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
