Series

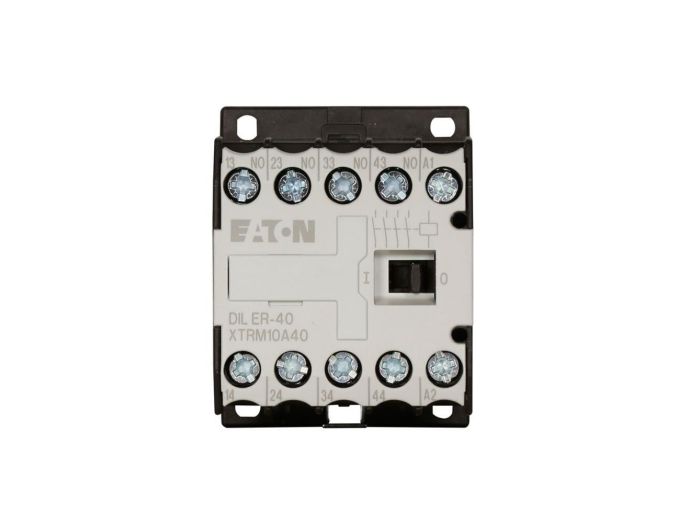

XTRM10A40T Eaton Control Relays, XT Series
MFG #:
XTRM10A40T
Eaton XT IEC control relay, IEC Miniature Control Relay, Screw terminals, 4NO contact configuration, 24V 50/60 Hz coil, 6A at 220/230/240V; 3A at 380/400/415V rated operational voltage, 45 mm - mini Frame size
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTRM10A40T |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Control Relays, XT Series |
| Nominal Voltage | 24 VAC |
| Voltage | 24 VAC |
| Number of Poles | 4 |
| Contact Configuration | 4NO |
| Thermal Current Rating | 10 A |
| Termination | Screw |
| Mounting | DIN Rail, Screw |
| Approvals | CE, CSA, UL |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description
Control Relays, XT Series
Item #
XTRM10A40T
MINI ctl rl 10A FR A 4NO 24/50 24/60
XT Series Information
- For Use with Mini and Standard Frame Size Contactors and Starters
- Control Relays ‑ AC Control from 12V to 550V 50Hz, 600V 60HZ; DC Control from 12V to 220V
- Available with Screw or Spring Cage Terminals
- Four‑pole Configurations
- IP20 Finger and Back‑of‑Hand Proof
Eaton's new line of XT relays and timers includes mini and standard frame control relays and auxiliary contacts, mini electronic on‑delay and multi‑function timers and an electronic star‑delta (wye‑delta) timer for use in star‑delta (wye‑delta) combinations. Because XT meets UL®, CSA® and CE standards, it is the perfect product solution for IEC applications all over the world. The compact, space saving and easy to install XT line of IEC contactors and starters is the efficient and effective solution for customer applications.
- Large Ambient Temperature Range: ‑25° to 50°C [‑13° to 122°F]
- The XTRE Control Relays have Positively Driven Contacts between the Relay and the Auxiliary Contact Modules as well as within the Auxiliary Contact Modules
