Series

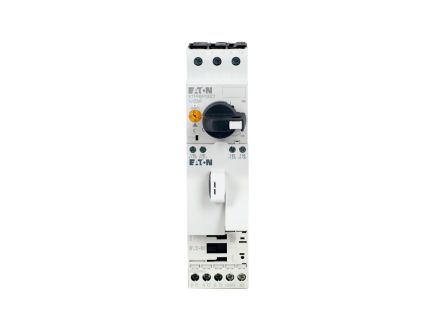

XTSC025DCF Eaton Manual Motor Controllers, XTSC Series
MFG #:
XTSC025DCF
Eaton XT IEC Full Voltage Non-Reversing Manual Combination Motor Controller, Combined with a 45 mm B-frame, 7 to 15A IEC contactor, Short circuit release: 35A, Factory-assembled, B-frame, 380V/50 Hz, 440V/60 Hz coil, 1NO-1NC, Three-phase, 2
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTSC025DCF |
| Manufacturer | Eaton |
| Product Series | XTSC |
| Family Series | Eaton Manual Motor Controllers, XTSC Series |
| Current Rating | 25 A |
| FLA Adjustment Range | 20-25 |
| Voltage | 230 VAC 50 HZ |
| Reversing | No |
| Frame Size-MMP | D |
| Frame Size-Contactor | C |
| Approvals | CE, UL |
| H x W x D | 6.50 " x 8.50 " x 12.25 " |
| Net Weight | 4.4 lbs |
| Gross Weight | 4.4 lbs |
Description
Manual Motor Controllers, XTSC Series
Item #
XTSC025DCF
MMC FVNR 16-25A D-MMP C-CONT 230/50
XTSC Series Information
- Visible Trip Indication
- Test Trip Function
- Class 10 Overload Protection
- Built‑in Heater and Magnetic Trip Elements to Protect the Motor
- Control Inputs Located at Front of Starter for Easy Access and Wiring
- Wide Range of Coils
- Adjustment Dial for Setting Motor FLA
- 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
