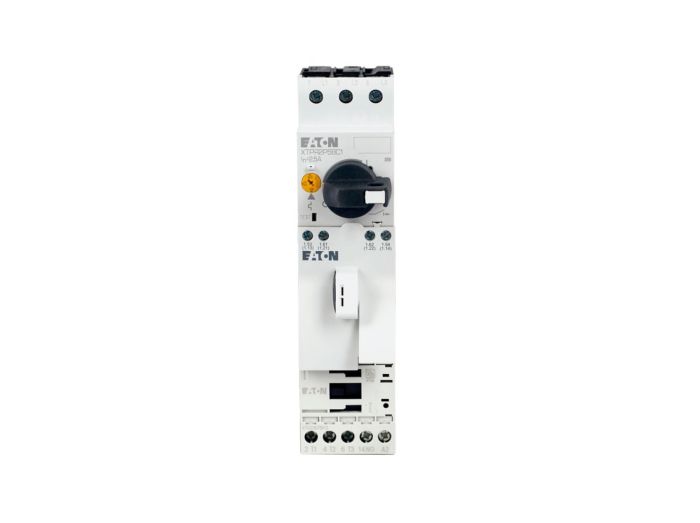

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
XTSC2P5BBA Eaton Manual Motor Controllers, XTSC Series
MFG #:
XTSC2P5BBA
Eaton XT IEC Full Voltage Non-Reversing Manual Combination Motor Controller, Combined with a 45 mm B-frame, 7 to 15A IEC contactor, Short circuit release: 224A, Factory-assembled, B-frame, 600V/60 Hz coil, 1NO-1NC, Three-phase, 16A,110V 50
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTSC2P5BBA |
| Manufacturer | Eaton |
| Product Series | XTSC |
| Family Series | Eaton Manual Motor Controllers, XTSC Series |
| Current Rating | 2.5 A |
| FLA Adjustment Range | 1.6-2.5 |
| Voltage | 110 VAC 50 Hz, 120 VAC 60 Hz |
| Reversing | No |
| Frame Size-MMP | B |
| Frame Size-Contactor | B |
| Approvals | CE, UL |
| H x W x D | 3.80 " x 1.80 " x 7.05 " |
| Net Weight | 1.335 lbs |
| Gross Weight | 1.57 lbs |
Description
Manual Motor Controllers, XTSC Series
Item #
XTSC2P5BBA
1NO-1NC, Three-phase, 16A,110V 50
XTSC Series Information
- Visible Trip Indication
- Test Trip Function
- Class 10 Overload Protection
- Built‑in Heater and Magnetic Trip Elements to Protect the Motor
- Control Inputs Located at Front of Starter for Easy Access and Wiring
- Wide Range of Coils
- Adjustment Dial for Setting Motor FLA
- 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
