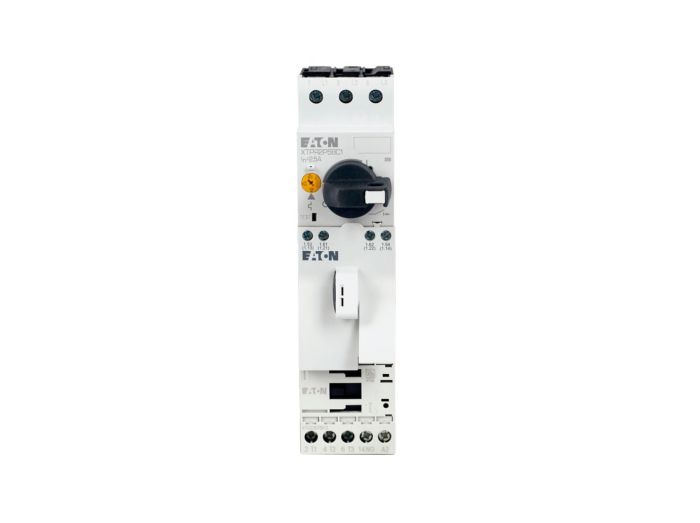

Name: XTSCP25BCL Eaton Manual Motor Controllers, XTSC Series
Brand: Eaton
SKU: XTSCP25BCL-CHGP
Price: 414.33 USD
Availability: BackOrder

Specifications

Specifications
Country of Origin	Germany
Manufacturer Part Number	XTSCP25BCL
Manufacturer	Eaton
Product Series	XTSC
Family Series	Eaton Manual Motor Controllers, XTSC Series
Current Rating	0.25 A
FLA Adjustment Range	0.16-0.25
Voltage	380 VAC 50 Hz, 440 VAC 60 Hz
Reversing	No
Frame Size-MMP	B
Frame Size-Contactor	C
Approvals	CE, UL
H x W x D	3.77 " x 1.77 " x 7.03 "
Net Weight	0.001 lbs
Gross Weight	0.001 lbs

Description

Manual Motor Controllers, XTSC Series

Item #

XTSCP25BCL

MMCFVNR 0.16-0.25A B-MMP C-Cont 1NO 380/

XTSC Series Information

Visible Trip Indication
Test Trip Function
Class 10 Overload Protection
Built‑in Heater and Magnetic Trip Elements to Protect the Motor
Control Inputs Located at Front of Starter for Easy Access and Wiring

Eaton's XT IEC open nonreversing manual motor controllers combine a manual motor protector with an IEC contactor(s) to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short‑circuit protection and remote control operation in one compact, assembled unit. These assembled manual motor controllers cover motors with FLA ratings from 0.10A to 65A.

Wide Range of Coils
Adjustment Dial for Setting Motor FLA
1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
