Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

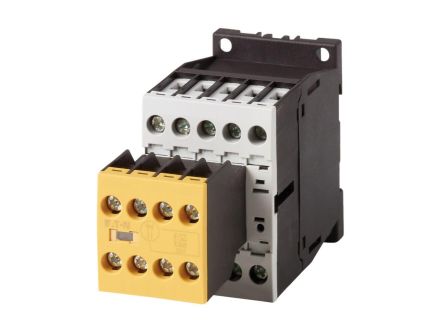

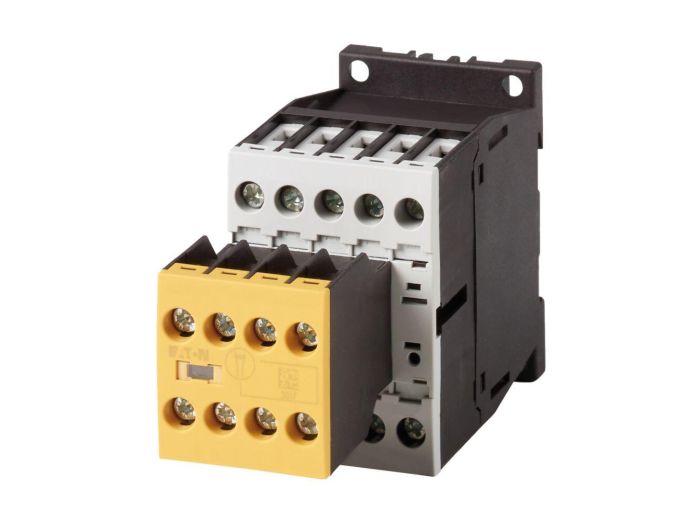

XTSE032CE23TD Eaton Contactors, XTSE Series
MFG #:
XTSE032CE23TD
Eaton XT IEC contactor, 32A, 24 Vdc, 2NO–3NC, 32A, Frame CE, 45mm, 10, 10, 20, 25 hp 3PH 200/208, 230/240, 460/480, 575/600 V, Three-pole, Non-reversing, 200-600V, XT IEC series, Full voltage non-reversing safety contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTSE032CE23TD |
| Manufacturer | Eaton |
| Product Series | XTSE |
| Family Series | Eaton Contactors, XTSE Series |
| Nominal Coil Voltage | 24 VDC |
| Coil Voltage | 24 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | C |
| Auxiliary Contact | 1NO, 1NC, 2NC+1NO |
| Termination | Screw |
| UL Motor Switching (AC3) | 32 A |
| H x W x D | 1.75 " x 3.45 " x 5.60 " |
| Net Weight | 1.305 lbs |
| Gross Weight | 1.385 lbs |
Description
Contactors, XTSE Series
Item #
XTSE032CE23TD
SFTY CNTCR 3P FVNR 32A FRM C 1NO 2NC+1NO
XTSE Series Information
Eaton XTSE safety contactors are designed with the OEM and end customer in mind. Providing enhanced levels of safety, XTSE contactors integrate to applications to not only achieve the highest safety circuits but provide additional levels of protection that reinforce end‑user safety. With offerings up to 150 A and 125 hp, XTSE contactors were engineered to provide highly effective control and protection for motors, compressors and pumps, etc.
