Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

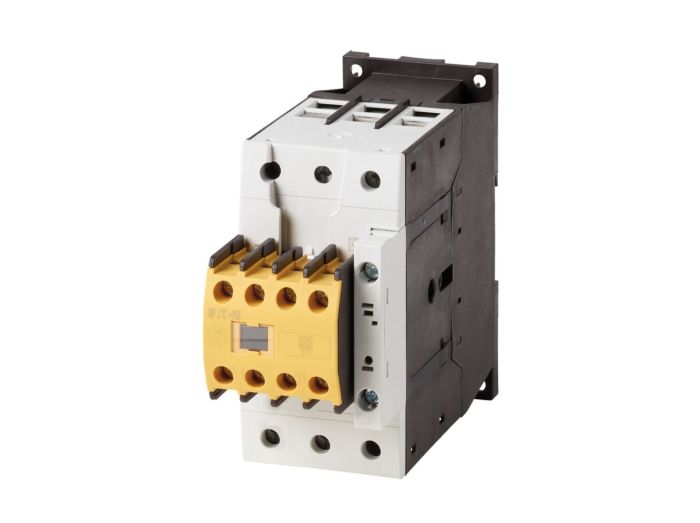

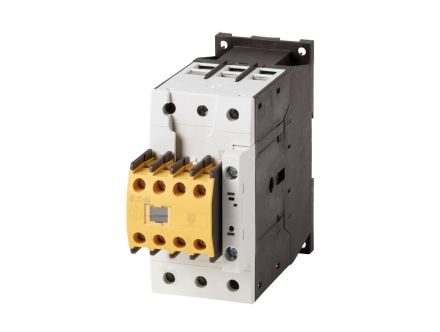

XTSE050D22A Eaton Contactors, XTSE Series
MFG #:
XTSE050D22A
Eaton XT IEC contactor, 50A, 110 Vac 50 Hz, 120 Vac 60 Hz, 2NO–2NC, 50A, Frame D, 55mm, 50-60 Hz, 15, 20, 40, 50 hp3PH 200/208, 230/240, 460/480, 575, 600 V, Three-pole, 200-600V,, Full voltage non-reversing safety contactor
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTSE050D22A |
| Manufacturer | Eaton |
| Product Series | XTSE |
| Family Series | Eaton Contactors, XTSE Series |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Screw |
| UL Motor Switching (AC3) | 50 A |
| H x W x D | 2.20 " x 4.50 " x 5.75 " |
| Net Weight | 2.15 lbs |
| Gross Weight | 2.275 lbs |
Description
Contactors, XTSE Series
Item #
XTSE050D22A
SFTY CNTCR 3P FVNR 50A FRM D 2NO 2NC 110
XTSE Series Information
Eaton XTSE safety contactors are designed with the OEM and end customer in mind. Providing enhanced levels of safety, XTSE contactors integrate to applications to not only achieve the highest safety circuits but provide additional levels of protection that reinforce end‑user safety. With offerings up to 150 A and 125 hp, XTSE contactors were engineered to provide highly effective control and protection for motors, compressors and pumps, etc.
Documents & Resources Links
