Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

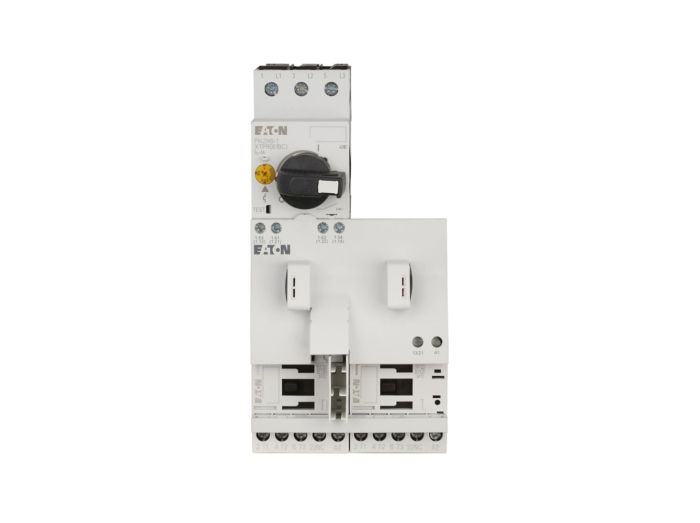

XTSR001BCT Eaton Manual Motor Controllers, XTSR Series
MFG #:
XTSR001BCT
Eaton XT IEC Full Voltage Non-Reversing Manual Combination Motor Controller, Combined with a 45 mm B-frame, 1A,24V 50/60 Hz, 7 to 15A IEC contactor, Factory-assembled, B-frame, 24V/50 or 60 Hz coil, 1NO-1NC
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTSR001BCT |
| Manufacturer | Eaton |
| Product Series | XTSR |
| Family Series | Eaton Manual Motor Controllers, XTSR Series |
| Current Rating | 1 A |
| FLA Adjustment Range | 0.63-1 |
| Voltage | 24 VAC 50 HZ, 24 VAC 60 Hz |
| Reversing | Yes |
| Frame Size-MMP | B |
| Frame Size-Contactor | C |
| Approvals | CE, UL |
| H x W x D | 3.75 " x 3.55 " x 7.22 " |
| Net Weight | 0.001 lbs |
| Gross Weight | 0.001 lbs |
Description
Manual Motor Controllers, XTSR Series
Item #
XTSR001BCT
MMC FVR 0.63-1A B-MMP C-Cont 24/50 24/60
XTSR Series Information
- Visible Trip Indication
- Test Trip Function
- Class 10 Overload Protection
- Built‑in Heater and Magnetic Trip Elements to Protect the Motor
- Control Inputs Located at Front of Starter for Easy Access and Wiring
- Wide Range of Coils
- Adjustment Dial for Setting Motor FLA
- 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
