Series

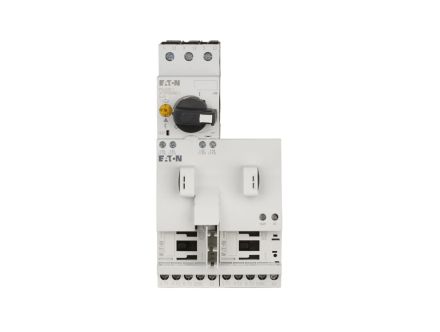

XTSR012BCBD Eaton Manual Motor Controllers, XTSR Series
MFG #:
XTSR012BCBD
Eaton XT Manual Motor Protector, 20A, 45 mm Frame size, Class 10 trip type, Pushbutton type,220 Vdc
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTSR012BCBD |
| Manufacturer | Eaton |
| Product Series | XTSR |
| Family Series | Eaton Manual Motor Controllers, XTSR Series |
| Current Rating | 12 A |
| FLA Adjustment Range | 8-12 |
| Voltage | 220 VDC |
| Reversing | Yes |
| Frame Size-MMP | B |
| Frame Size-Contactor | C |
| Approvals | CE, UL |
| H x W x D | 3.75 " x 3.55 " x 7.22 " |
| Net Weight | 0.001 lbs |
| Gross Weight | 0.001 lbs |
Description
Manual Motor Controllers, XTSR Series
Item #
XTSR012BCBD
MMC FVR 8-12A B-MMP C-Cont 200-240VDC
XTSR Series Information
- Visible Trip Indication
- Test Trip Function
- Class 10 Overload Protection
- Built‑in Heater and Magnetic Trip Elements to Protect the Motor
- Control Inputs Located at Front of Starter for Easy Access and Wiring
- Wide Range of Coils
- Adjustment Dial for Setting Motor FLA
- 1NO‑1NC Auxiliary Contact as Standard on Manual Motor Controller and Combination Motor Controller
