Y13S2BCR
MFG #:
Y13S2BCR
Specifications
| Manufacturer Part Number | Y13S2BCR |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose, Hazardous Location |
| Horsepower | 1/3 hp |
| Kilowatts | 0.2 kW |
| Speed | 1,765 RPM |
| RPM | 1,765 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56C |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footless |
| Current Rating | 1.5 A |
| Composition | Rolled Steel |
| Net Weight | 50 lbs |
| Gross Weight | 50 lbs |
Description
Motors, Series
Item #
Y13S2BCR

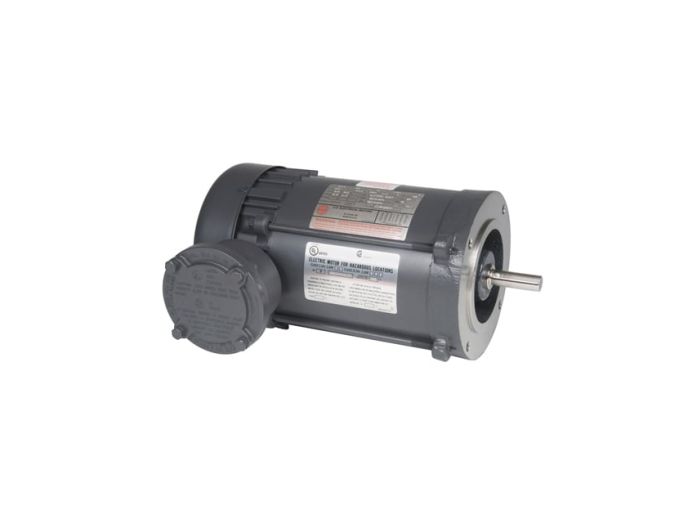

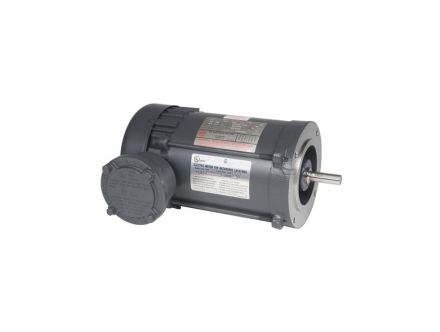

Motor, 1/3 HP, 1800 RPM, 56C
Series Information
Documents & Resources Links
Added to Cart
Y13S2BCR US Motors Motors, Motor, 1/3 HP, 1800 RPM, 56C
MFG #:
Y13S2BCR
Motor, 1/3 HP, 1800 RPM, 56C
