Specifications
| Country of Origin | Czech Republic |
|---|---|
| Manufacturer Part Number | YR40.242 |
| Manufacturer | Puls |
| Product Series | Dimension |
| Family Series | Puls Power Supplies, Dimension Series |
| Number of Inputs | 2 |
| Nominal Input Voltage | 12 V, 24 V |
| Input Voltage | 8-36 VDC |
| Max Output Current | 65 A |
| Mounting | DIN Rail |
| Terminal Type | Spring Clamp |
| Approvals | cUL, cURus, CSA, CE, GL |
| H x W x D | 2.09 " x 5.91 " x 7.20 " |
| Net Weight | 0.1306 lbs |
| Gross Weight | 0.8047 lbs |
Description
Power Supplies, Dimension Series
Item #

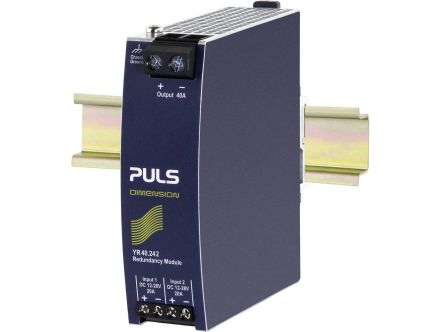

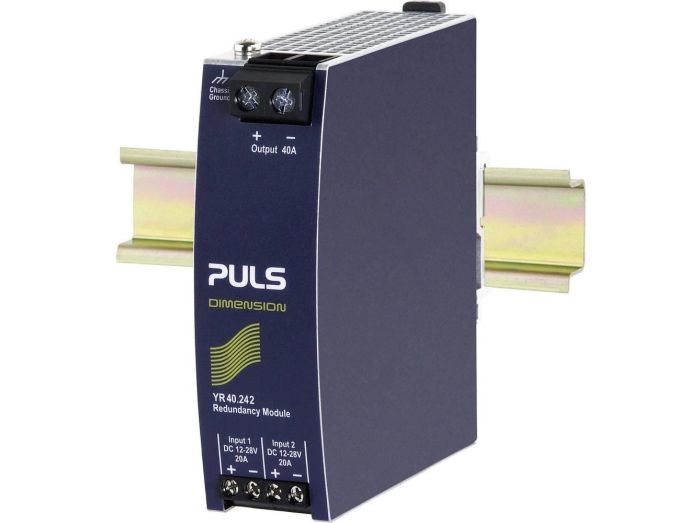

YR40.242
Redundancy Module, 12-28VDC, 40A,
Dimension Series Information
- Single Output
- 12~72 VDC Outputs Available
- Up tp 40 Amp Outputs Available
- 100~552 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- High Efficiency ‑ Up to 96%
- Single or Three Phase Units
