YR40.245
Puls Power Supplies, Dimension Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

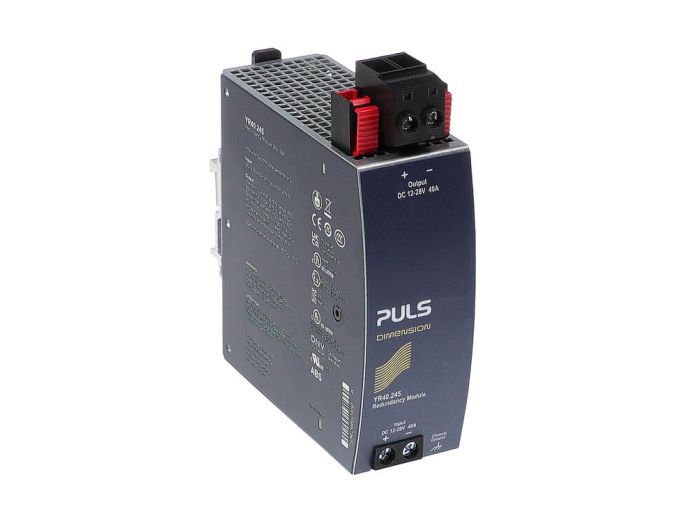

YR40.245 Puls Power Supplies, Dimension Series
Redundancy Module, 12-28VDC, 40A,
MFG Item Number
YR40.245
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Power Supplies, Dimension Series
Item #
YR40.245
Redundancy Module, 12-28VDC, 40A,
Dimension Series Information
- Single Output
- 12~72 VDC Outputs Available
- Up tp 40 Amp Outputs Available
- 100~552 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- High Efficiency ‑ Up to 96%
- Single or Three Phase Units
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Manufacturer Part Number | YR40.245 |
| Manufacturer | Puls |
| Product Series | Dimension |
| Family Series | Puls Power Supplies, Dimension Series |
| Description | Redundancy Module, 12-28VDC, 40A, Single Input with Plug Connector |
| Number of Inputs | 1 |
| Nominal Input Voltage | 12 V, 24 V |
| Input Voltage | 8-36 VDC |
| Max Output Current | 65 A |
| Mounting | DIN Rail |
| Terminal Type | Spring Clamp |
| Approvals | cUL, cURus, CSA, CE, GL |
| H x W x D | 2.09 " x 5.91 " x 7.20 " |
| Net Weight | 0.735 lbs |
| Gross Weight | 0.9369 lbs |
