Specifications

Specifications
Manufacturer Part Number	Z2HCUFBB000A000000XX
Manufacturer	ABB
Product Series	EMAX 2
Family Series	ABB Circuit Breakers, EMAX 2 Series
Poles	3
Max Voltage	600 VAC
Electronic Trip Unit	LSI
Mounting	Fixed
Neutral Pole	No
Shunt Trip	No
Undervoltage Release	No
Frame Size	E2.2
Communication	None
Closing Coil (YC)	None
UL Standard	1066
Approvals	UL
H x W x D	10.63 " x 10.87 " x 14.61 "
Gross Weight	115 lbs
Net Weight	0 lbs

Description

Circuit Breakers, EMAX 2 Series

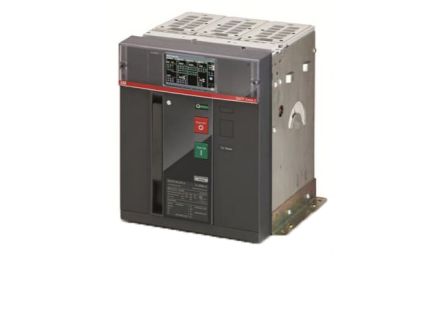

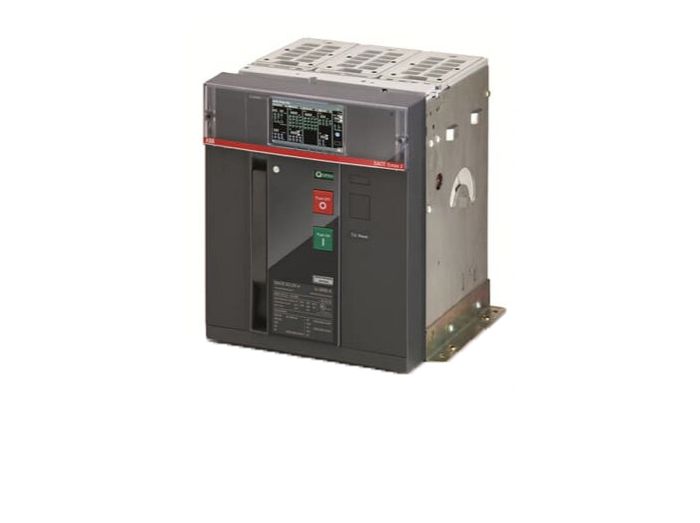

Item #

Z2HCUFBB000A000000XX

E2.2H-A 800 DIP LSI 3FHR

EMAX 2 Series Information

SACE Emax 2 circuit breaker is the first single device ready to manage all the dynamics of a low‑voltage electrical installation
Load shedding
Power controller
Embedded ATS functions
Synchrocheck logics
Interface protection system
Adaptive protection

SACE Emax 2 circuit breakers can be integrated perfectly into all automation and energy management systems to improve productivity and energy consumption and to carry out remote service. All circuit breakers can be equipped with communication units for use with Modbus, Profibus, and DeviceNet protocols as well as the modern Modbus
TCP, Profinet, EtherNet/IP. The cartridge‑type modules can be easily installed directly on the terminal box, even at a later date.
