Z2HREHAB000E000006XX
ABB Circuit Breakers, EMAX 2 Series

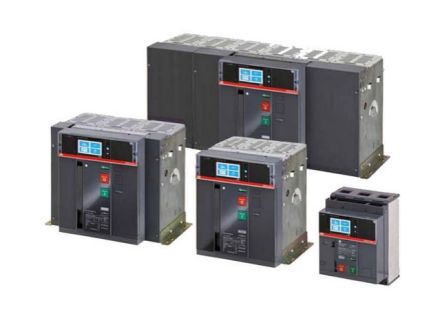

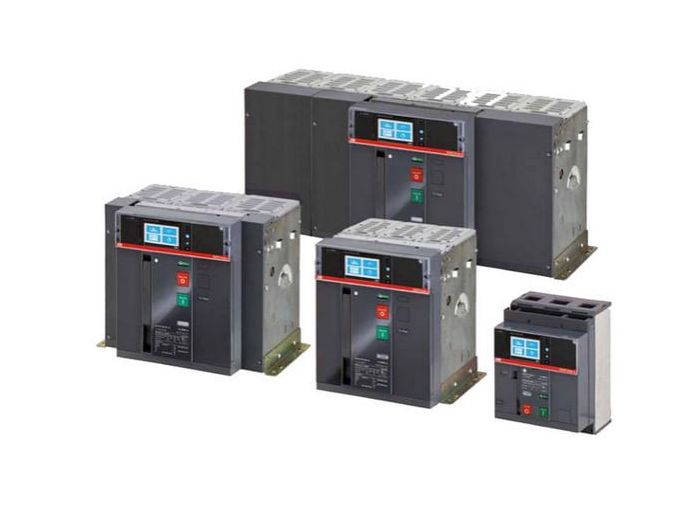

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Z2HREHAB000E000006XX ABB Circuit Breakers, EMAX 2 Series
E2.2H 1250 Ekip Dip LSI 3p WMP
MFG Item Number
Z2HREHAB000E000006XX
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, EMAX 2 Series
Item #
Z2HREHAB000E000006XX
E2.2H 1250 Ekip Dip LSI 3p WMP
EMAX 2 Series Information
- SACE Emax 2 circuit breaker is the first single device ready to manage all the dynamics of a low‑voltage electrical installation
- Load shedding
- Power controller
- Embedded ATS functions
- Synchrocheck logics
- Interface protection system
- Adaptive protection
TCP, Profinet, EtherNet/IP. The cartridge‑type modules can be easily installed directly on the terminal box, even at a later date.
Specifications
| Manufacturer Part Number | Z2HREHAB000E000006XX |
|---|---|
| Manufacturer | ABB |
| Product Series | EMAX 2 |
| Family Series | ABB Circuit Breakers, EMAX 2 Series |
| Description | E2.2H 1250 Ekip Dip LSI 3p WMP |
| Poles | 3 |
| Max Voltage | 690 VAC |
| Electronic Trip Unit | LSI |
| Mounting | DrawOut |
| Neutral Pole | No |
| Shunt Trip | No |
| Undervoltage Release | No |
| Frame Size | E2.2 |
| Frame Rating | 1,250 A |
| Communication | None |
| Closing Coil (YC) | None |
| UL Standard | 1066 |
| Approvals | IEC |
| H x W x D | 20.28 " x 20.28 " x 23.62 " |
| Gross Weight | 130.57 lbs |
| Net Weight | 0 lbs |
