Specifications
| Manufacturer Part Number | Z2SUELAN200A000000XX |
|---|---|
| Manufacturer | ABB |
| Product Series | EMAX 2 |
| Family Series | ABB Circuit Breakers, EMAX 2 Series |
| Poles | 3 |
| Max Voltage | 690 VAC |
| Electronic Trip Unit | LSIG |
| Mounting | DrawOut |
| Neutral Pole | No |
| Shunt Trip | No |
| Undervoltage Release | No |
| Frame Size | E2.2 |
| Frame Rating | 2,500 A |
| Communication | None |
| Closing Coil (YC) | None |
| UL Standard | 1066 |
| Approvals | IEC |
| H x W x D | 12.48 " x 15.47 " x 16.73 " |
| Gross Weight | 128 lbs |
| Net Weight | 0 lbs |
Description
Circuit Breakers, EMAX 2 Series
Item #

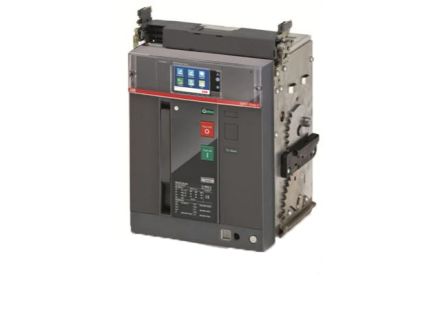

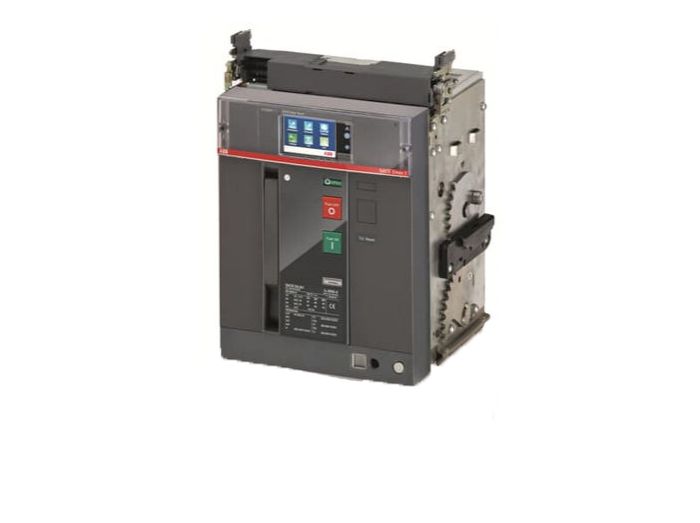

Z2SUELAN200A000000XX
E2.2S 2500 G TCH LSIG 3WMP
EMAX 2 Series Information
- SACE Emax 2 circuit breaker is the first single device ready to manage all the dynamics of a low‑voltage electrical installation
- Load shedding
- Power controller
- Embedded ATS functions
- Synchrocheck logics
- Interface protection system
- Adaptive protection
TCP, Profinet, EtherNet/IP. The cartridge‑type modules can be easily installed directly on the terminal box, even at a later date.
