Specifications
| Manufacturer Part Number | Z615 |
|---|---|
| Manufacturer | Marathon Electric |
| Product Series | PERMANENT MAGNET SCR |
| Family Series | Marathon Electric Motors, PERMANENT MAGNET SCR Series |
| Horsepower | 1-1/2 hp |
| Base RPM | 1,750 RPM |
| Frame | 145TC |
| Armature Voltage | 180 V |
| Current Rating | Armature: 7.5 A |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Removable Base |
| Length | 18.34 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

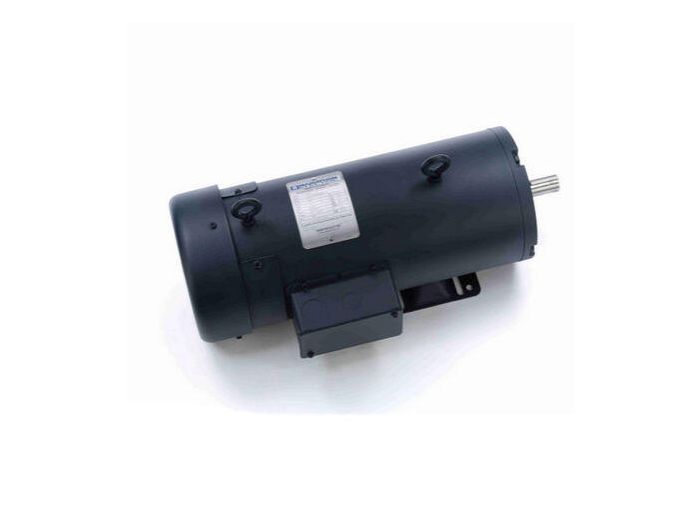

Motors, PERMANENT MAGNET SCR Series
Item #
Z615
Motor
PERMANENT MAGNET SCR Series Information
- 1/4~2 Horsepower
- 90 or 180 VDC Armature
- TEFC Enclosures
- C‑Face w/Removable Base
- UL Recognized; CSA Certified
- Class F Insulation
- High Starting Torque
- Oversized Brushes for Extra Long Life
- Permanently Lubricated Sealed Ball Bearings
