Series

132

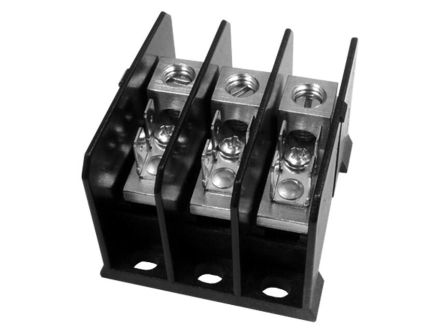

1323579 Marathon Special Products Power Distribution Blocks, 132 Series

MFG #:

1323579

Splicer Block, 3-P, 175A, Bx/Bx, Line: (1)2/0-14AWG Box Lug, Load: (1)2/0-14AWG Box Lug + (1)1/4in. Q/C

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

132

1323579 Marathon Special Products Power Distribution Blocks, 132 Series

Name: 1323579 Marathon Special Products Power Distribution Blocks, 132 Series
Brand: Marathon Special Products
SKU: 1323579-MRTH
Price: 49.66 USD
Availability: InStock

MFG #:

1323579

Splicer Block, 3-P, 175A, Bx/Bx, Line: (1)2/0-14AWG Box Lug, Load: (1)2/0-14AWG Box Lug + (1)1/4in. Q/C

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Manufacturer Part Number	1323579
Manufacturer	Marathon Special Products
Product Series	132
Family Series	Marathon Special Products Power Distribution Blocks, 132 Series
Number of Poles	3
AC Voltage	600 VAC
Current Rating	175 A
Number of Inputs per Pole	1
Number of Outputs per Pole	2
Electrical Connection	Box Lug/Quick Connect
Mounting	DIN Rail/Panel Mount
Line Side Wire Range	2/0-14 AWG
Output Wire Range	(1) 2-14 AWG; (1) 1/4 " Quick Connect
Cover Included	No
Composition	Phenolic
Color	Black
Approvals	CE, CSA, UL
H x W x D	3.25 " x 2.55 " x 3.30 "
Net Weight	0.52 lbs
Gross Weight	0.52 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	1323579CH	Splicer block, 3-P, 175A, Bx/Bx, Line: (1)2/0-14AWG Box Lug, Load: (1)2-14AWG Box Lug + (1)1/4in. Q.C.	600 VAC	DIN Rail/Panel Mount	Marathon Special Products Power Distribution Blocks	Price unavailable
